VOOPL-216.176

Terminal strip, max. 6 room thermostats and 12 valve actuators, IP20

This device was specially developed for wiring 230 V~ individual room temperature controllers with the associated valve actuators for fixed installation. The terminal block is suitable for heating controllers with or without ECO function as well as for heating/cooling controllers with integrated heating/cooling changeover switch. A master-slave control can be created by using a clock controller or an external timer. Depending on the controller used, valve actuators with NC (normally closed) or NO (normally open) can be connected to this terminal strip.

Luka Unpacks

Loading video…

SKU: DA480510 Categories: ,
Add to wishlist
Compare

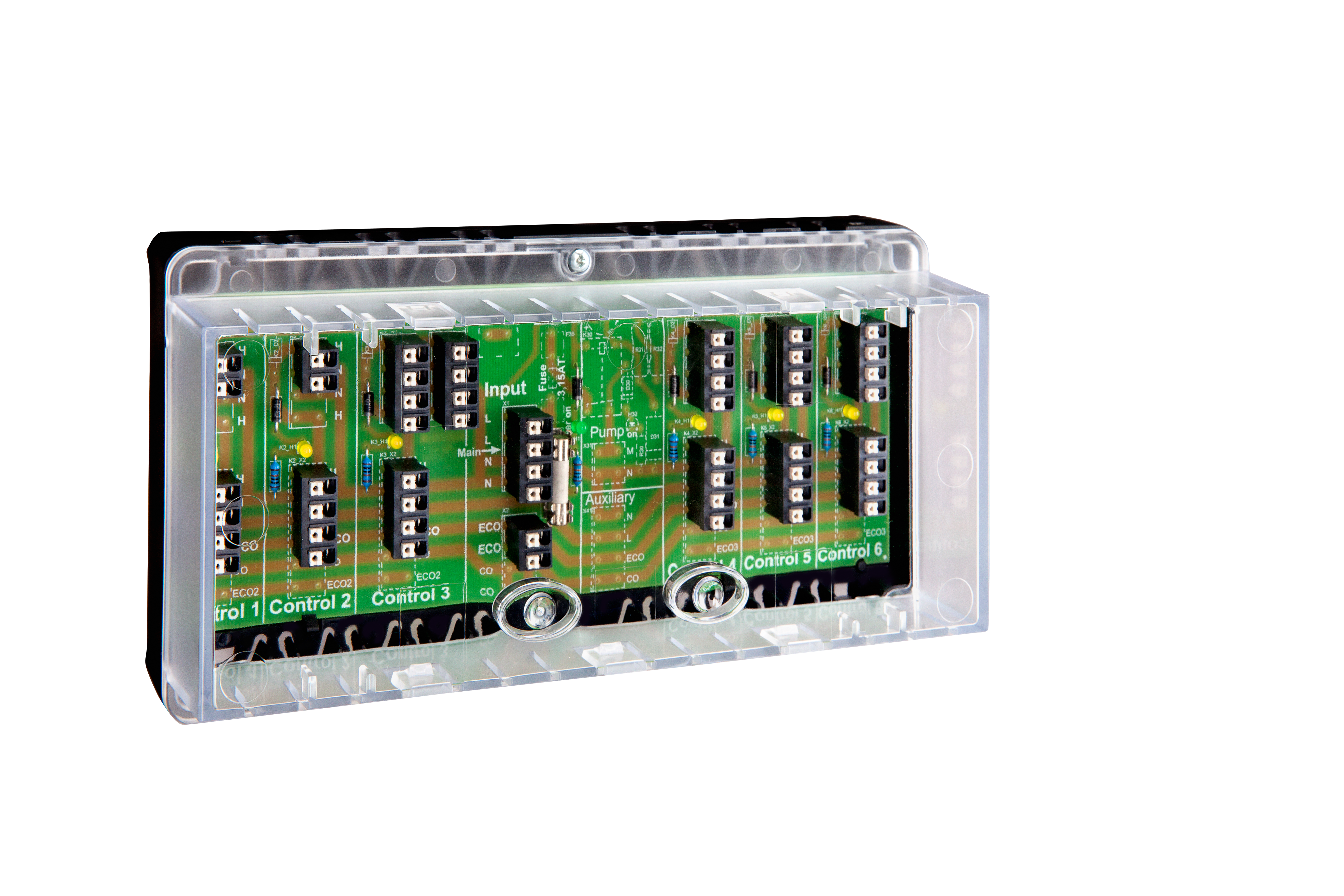

VOOPL-216.176 — produktbild

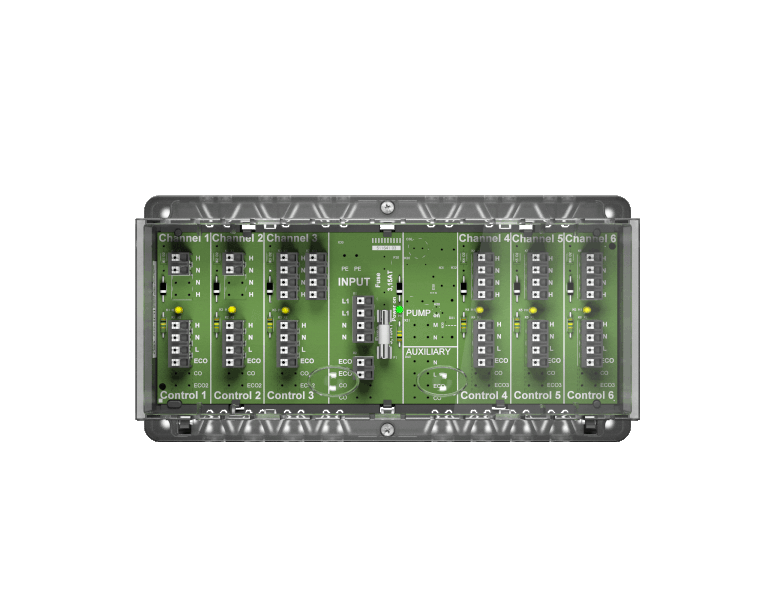

VOOPL-216.176 — gif_360

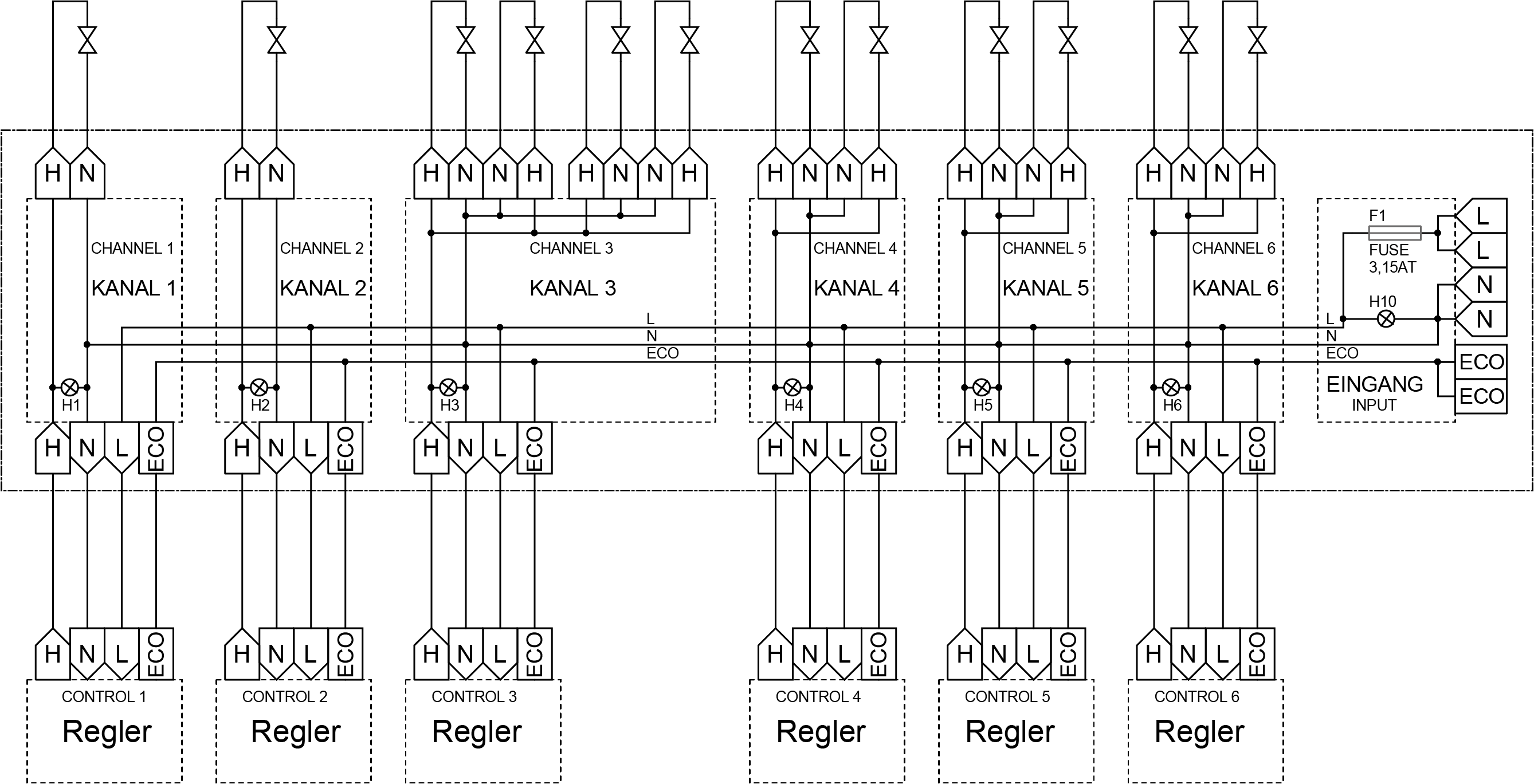

VOOPL-216.176 — anschlussbild

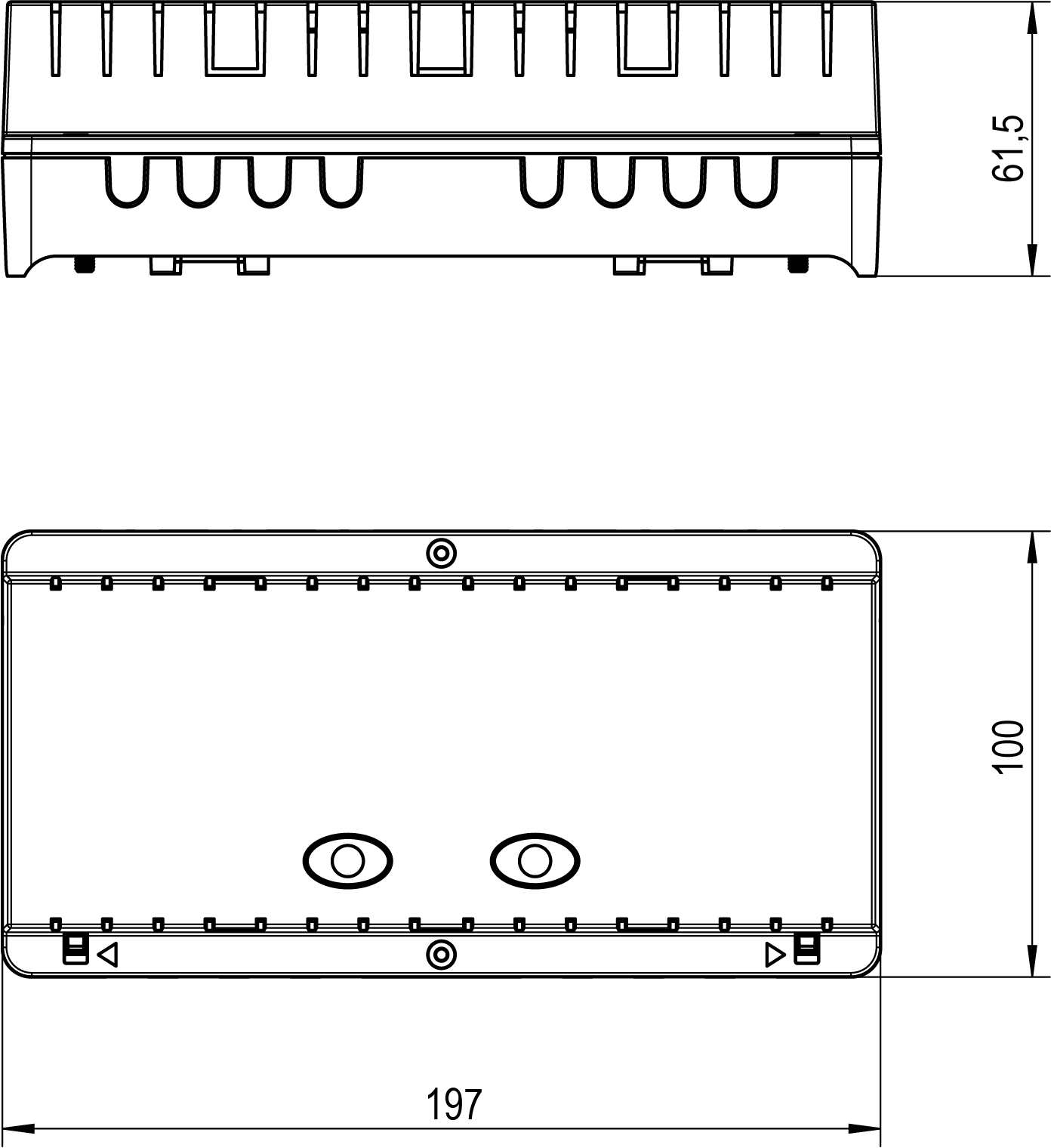

VOOPL-216.176 — masszeichnung
Click to enlarge
    VOOPL-216.176 — produktbild
    VOOPL-216.176 — gif_360
    VOOPL-216.176 — anschlussbild
    VOOPL-216.176 — masszeichnung
    Connection cross-section0,75 – 1,5 mm² (rigid) / 0,5 – 1 mm² (flex)
    Number of outputs6, 6
    Number of channels/zone6
    Operating voltage230 VAC, 50 Hz
    Electric connectionspring push-lock terminals
    Colouranthracite
    Bearing temperature–20 … 70 °C
    Max. air humidity (non-condensing)95 % r.H.
    Housing materialplastic PC
    Max. switching voltage230 VAC, 50 Hz
    Min. switching voltage230 VAC, 50 Hz
    Mounting/attachmentsurface mounting or standard rail
    Surface finishgloss
    Heating control function
    Cooling control function
    Potential free switching contactNo
    Protection class
    Ambient temperature−10 … 50 °C
    AssemblyTerminal strip, fastening screws
    Dimensions (W x H x D)197 mm x 100 mm x 61,5 mm
