RTBSB-001.000

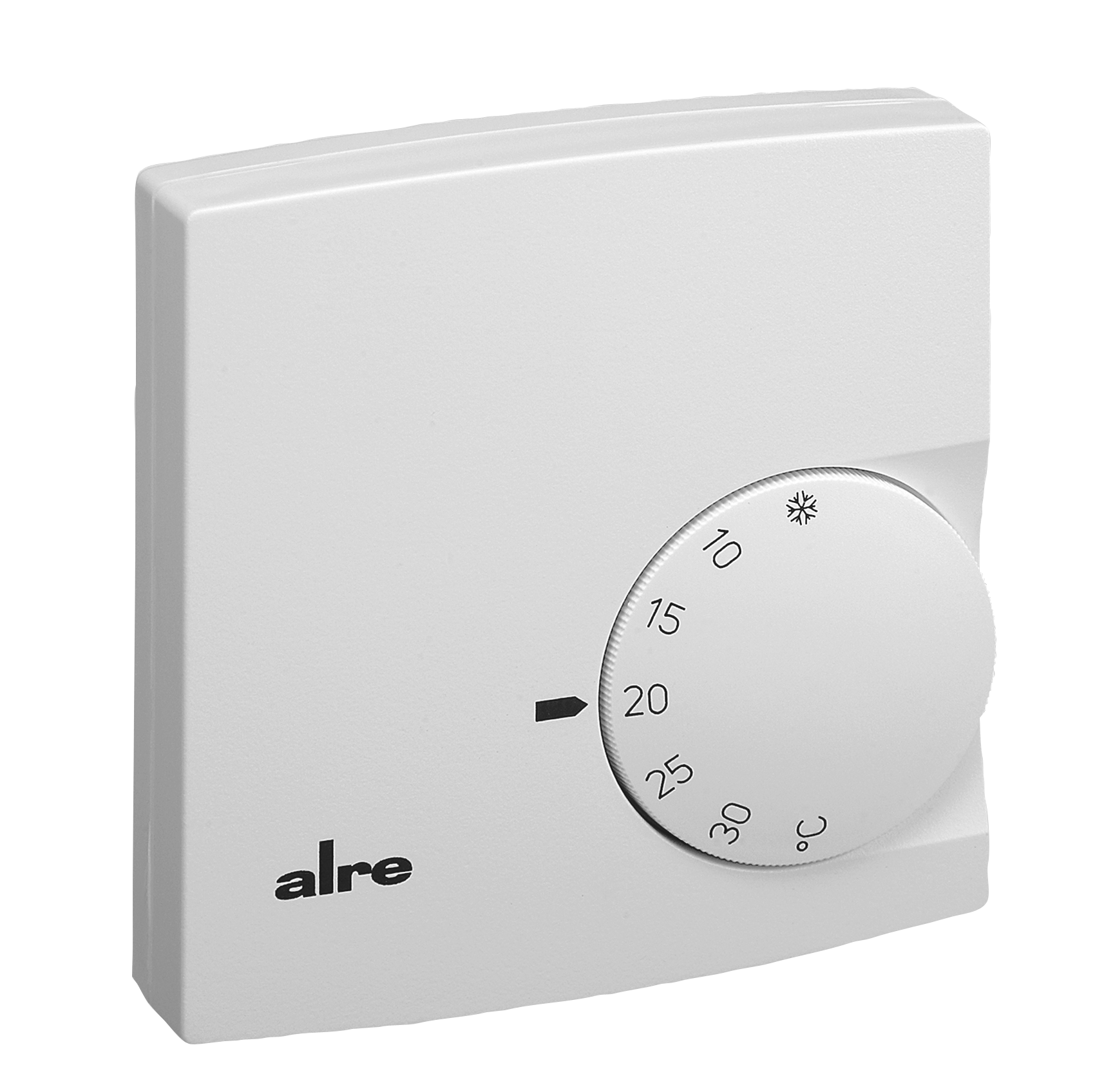

Room thermostat, surface-mounted, 5…30 °C, 230 VAC, NC contact
Electromechanical room thermostat in surface-mounted housing for controlling or monitoring temperatures in offices, living rooms and hotels. Suitable for all types of heating. A very precise switching differential is achieved through thermal feedback. The setting range can be changed using the range restriction located under the setting knob. The device is installed by means of surface/wall mounting (4-hole mounting on flush-mounted box).
| Connection cross-section | 0,12 – 2,5 mm² |
|---|---|
| Number of outputs | 1, 1 |
| Number of outputs, heating | 1 |
| Number of control ranges | 1 |
| Heating display | No |
| Output signal | |
| External setting | Yes |
| Operation | |
| Operating voltage | 230 VAC, 50 Hz |
| Design | Berlin 2000 |
| ECO function (reduction) | No |

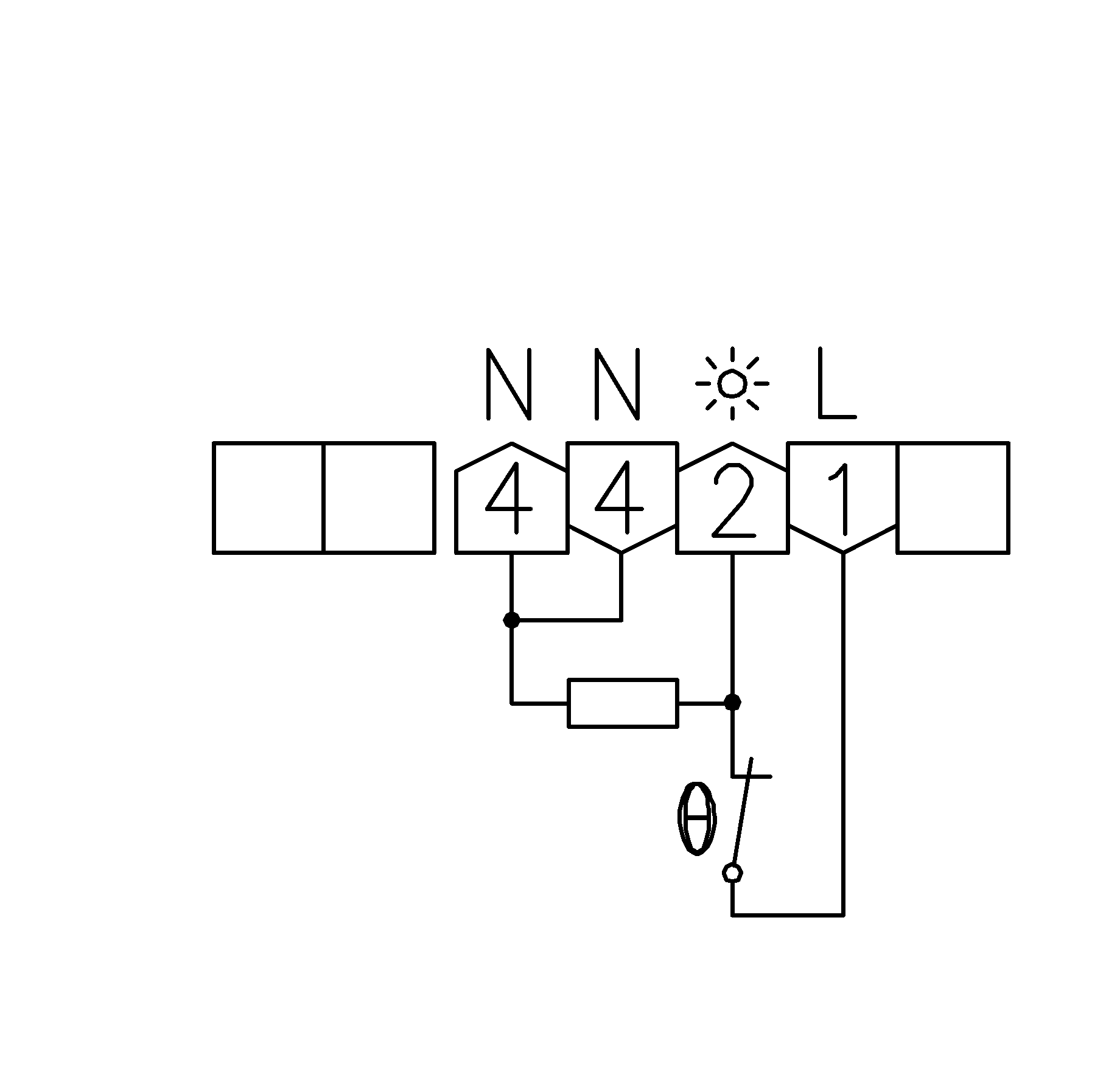

| Electric connection | |
| Energy efficiency class | I |
| Colour | |
| RAL colour number (similar) | 9010 |
| Sensor element | |
| Internal setting | No |
| Bearing temperature | –20 … 70 °C |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Housing material | |
| Max. power consumption | < 0,5 W |
| Max. switching voltage | 230 VAC, 50 Hz |
| Max. switching current | 10 (4) A |
| Mechanical range reduction | Yes |
| Medium | |
| Min. switching voltage | 230 VAC, 50 Hz |
| Mounting/attachment | |
| Surface finish | matt |
| Test mark approval | CE |
| Control range | 5 … 30 °C |
| Heating control function | |
| Cooling control function | |
| Control behaviour | 2-point |
| Switching differential | 0,5 K (delta T max. 4 K/h) |
| Switching element | |
| On/Off switch | No |
| Heating/cooling switch | No |
| Switching contact | |
| Potential free switching contact | No |
| Switching power | 2300 W |
| Protection class | IP30 |
| Protection class | II, following appropriate mounting |
| Safety and EMC | in accordance with DIN EN 60730 |
| Scale | Degree Celsius |
| Thermal feedback | Yes |
| Ambient temperature | 0 … 30 °C |
| Assembly | complete device |

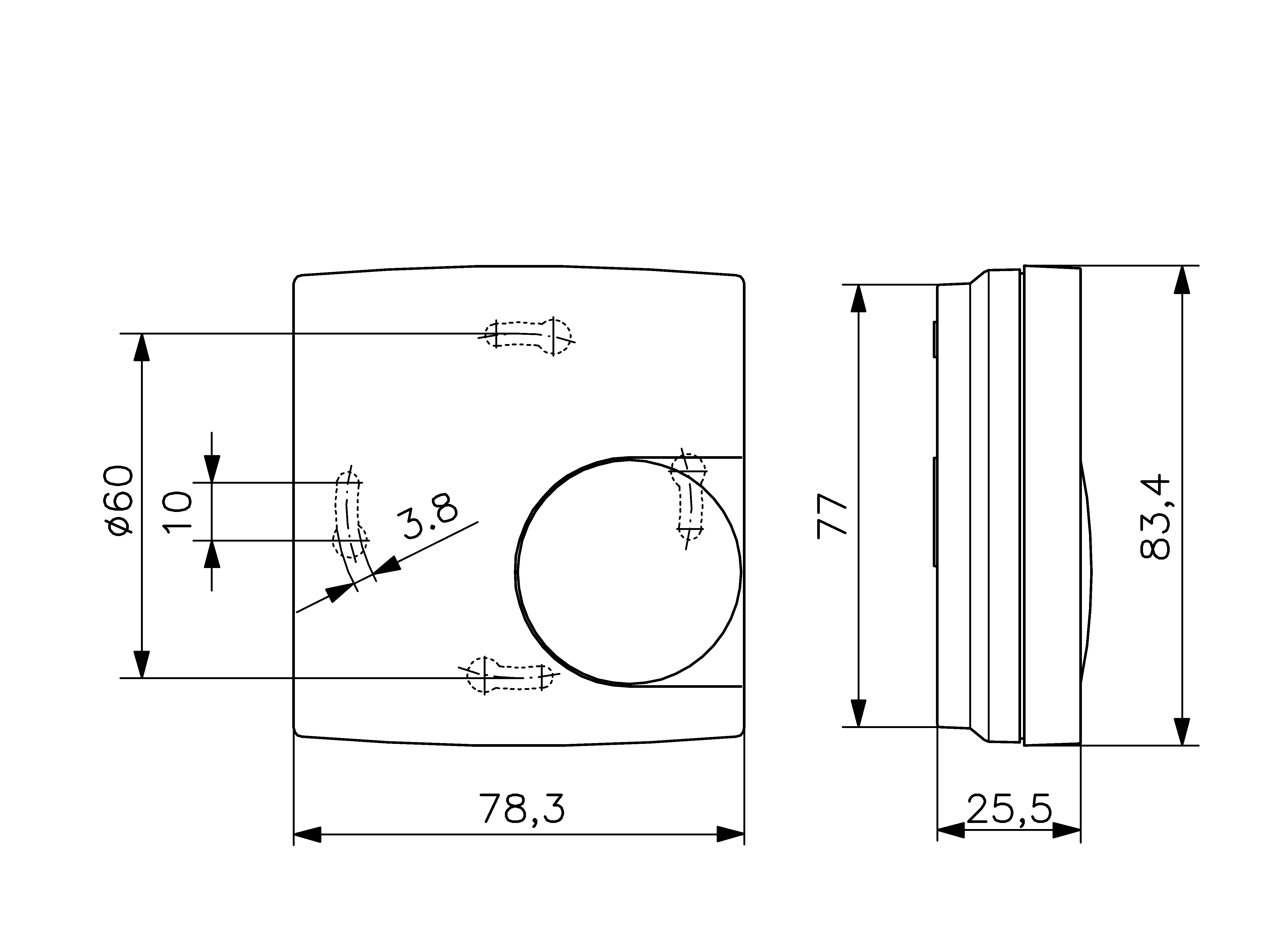

| Dimensions (W x H x D) | 78,3 mm x 83,4 mm x 25,5 mm |
