RTBSB-001.026

Room thermostat, surface-mounted, 5…30 °C, 230 VAC, changeover contact, ON/OFF switch, fan output

Electromechanical room thermostat in a surface-mounted housing for controlling or monitoring temperatures in offices, living rooms and hotels. Suitable for all types of heating. A very precise switching differential is achieved through thermal feedback. The setting range can be changed using the range restriction located under the setting knob. The device has an ON/OFF switch. The fan output is permanently switched to 230 VAC when the appliance is switched on.


SKU: MA010900 Categories: , ,
Add to wishlist
Compare

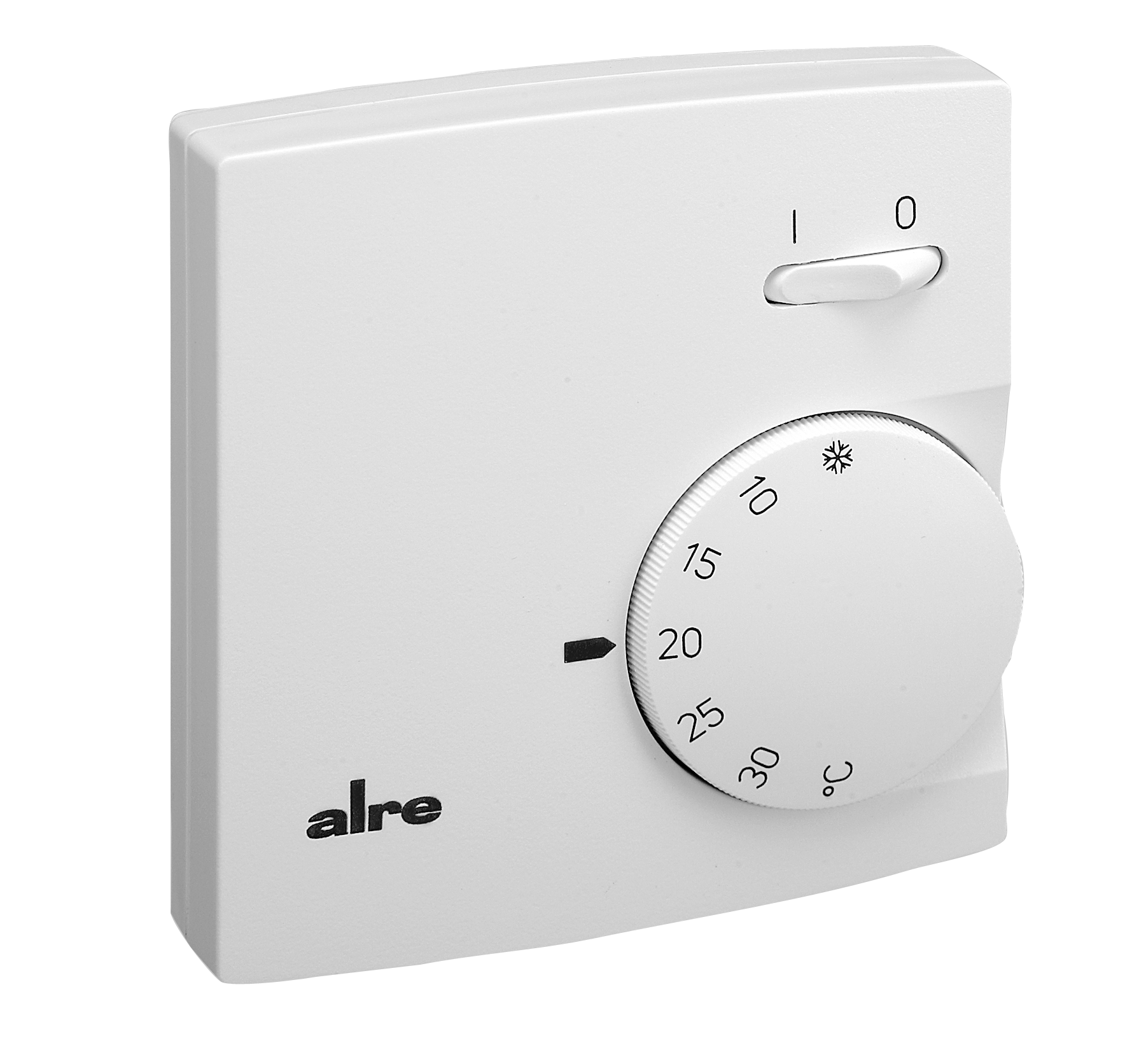

RTBSB-001.026 — produktbild

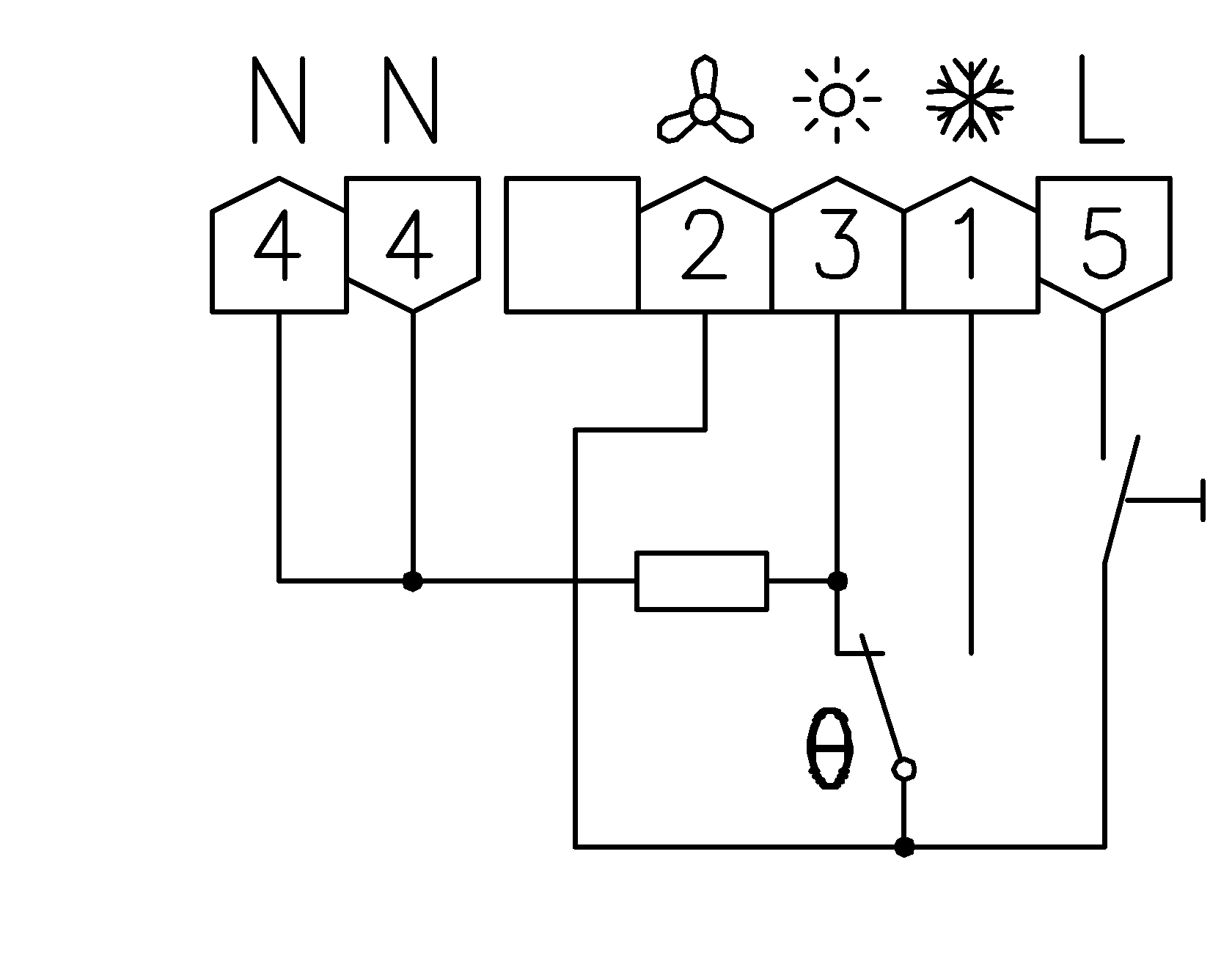

RTBSB-001.026 — anschlussbild

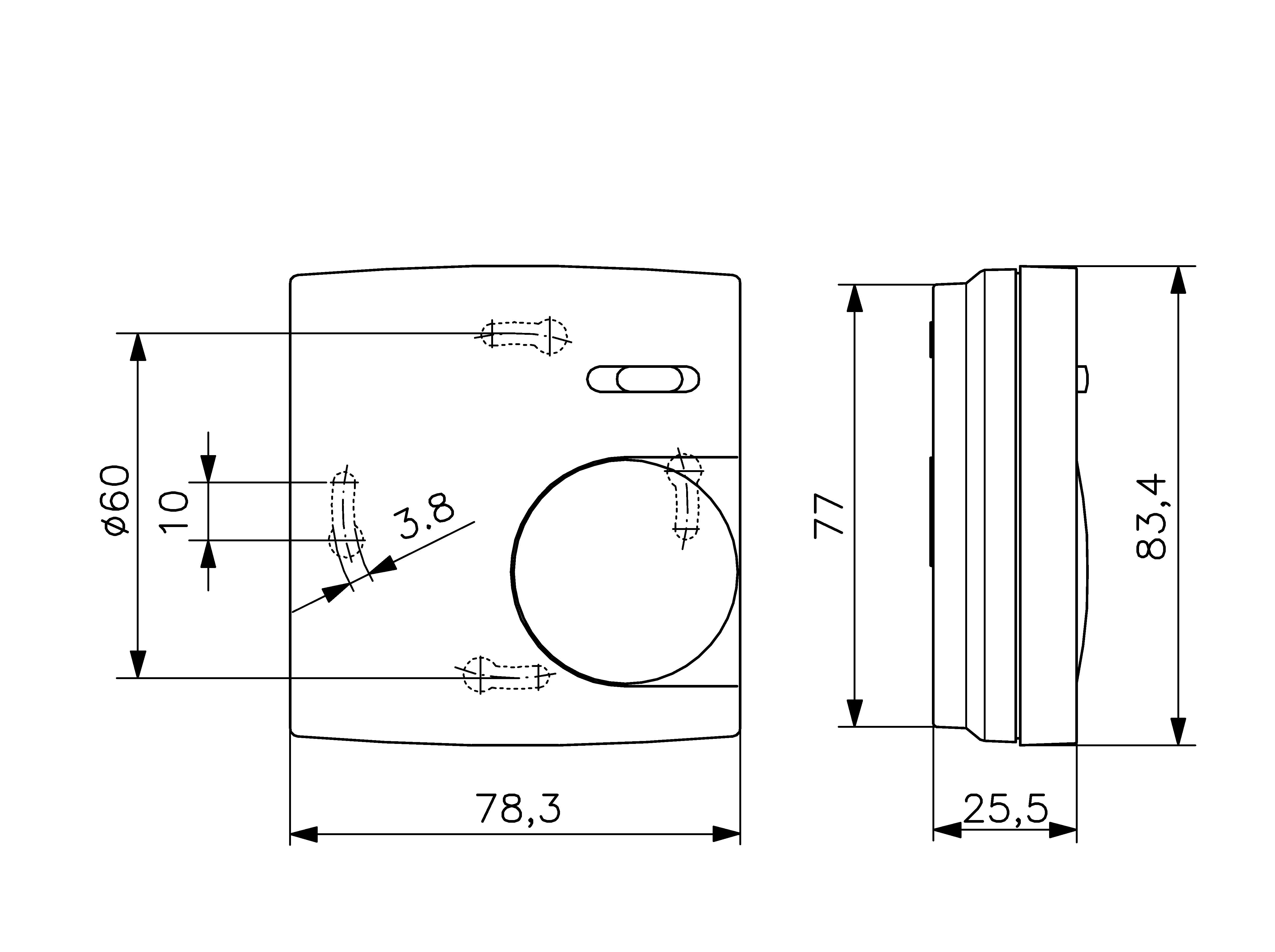

RTBSB-001.026 — masszeichnung
Click to enlarge
    RTBSB-001.026 — produktbild
    RTBSB-001.026 — anschlussbild
    RTBSB-001.026 — masszeichnung
    Connection cross-section0,12 – 2,5 mm²
    Number of outputs3
    Number of outputs, heating1
    Number of outputs, cooling1
    Number of control ranges1
    Heating displayNo
    Output signalswitching
    External settingYes
    Operationrotary knob and switches
    Operating voltage230 VAC, 50 Hz, 230 VAC, 50 Hz
    DesignBerlin 2000, Berlin 2000
    ECO function (reduction)No
    Electric connectionscrew terminals
    Energy efficiency classI
    Colourpure white
    RAL colour number (similar)9010
    Sensor element
    Internal settingNo
    Bearing temperature–20 … 70 °C
    Max. air humidity (non-condensing)95 % r.H.
    Housing materialplastic ABS
    Max. power consumption< 0,5 W
    Max. switching voltage230 VAC, 50 Hz
    Max. switching currentheating: 10 (4) A
    Mechanical range reductionYes
    MediumAir
    Min. switching voltage230 VAC, 50 Hz
    Mounting/attachmentsurface mounting
    Surface finishmatt, matt
    Test mark approvalCE
    Control range5 … 30 °C
    Heating control functionYes
    Cooling control functionYes
    Control behaviour2-point
    Switching differentialHeating/cooling: 0,5 K (delta T max. 4 K/h)
    Switching elementbimetal contact
    On/Off switchYes
    Heating/cooling switchNo
    Switching contacttwo-way contact
    Potential free switching contactNo
    Switching power2300 W (230 VAC) / 1150 W (230 VAC)
    Protection classIP30
    Protection classII, following appropriate mounting
    Safety and EMCin accordance with DIN EN 60730
    ScaleDegree Celsius
    Ambient temperature0 … 30 °C
    Assemblycomplete device
    Dimensions (W x H x D)78,3 mm x 83,4 mm x 25,5 mm
