RTBSU-401.052#21

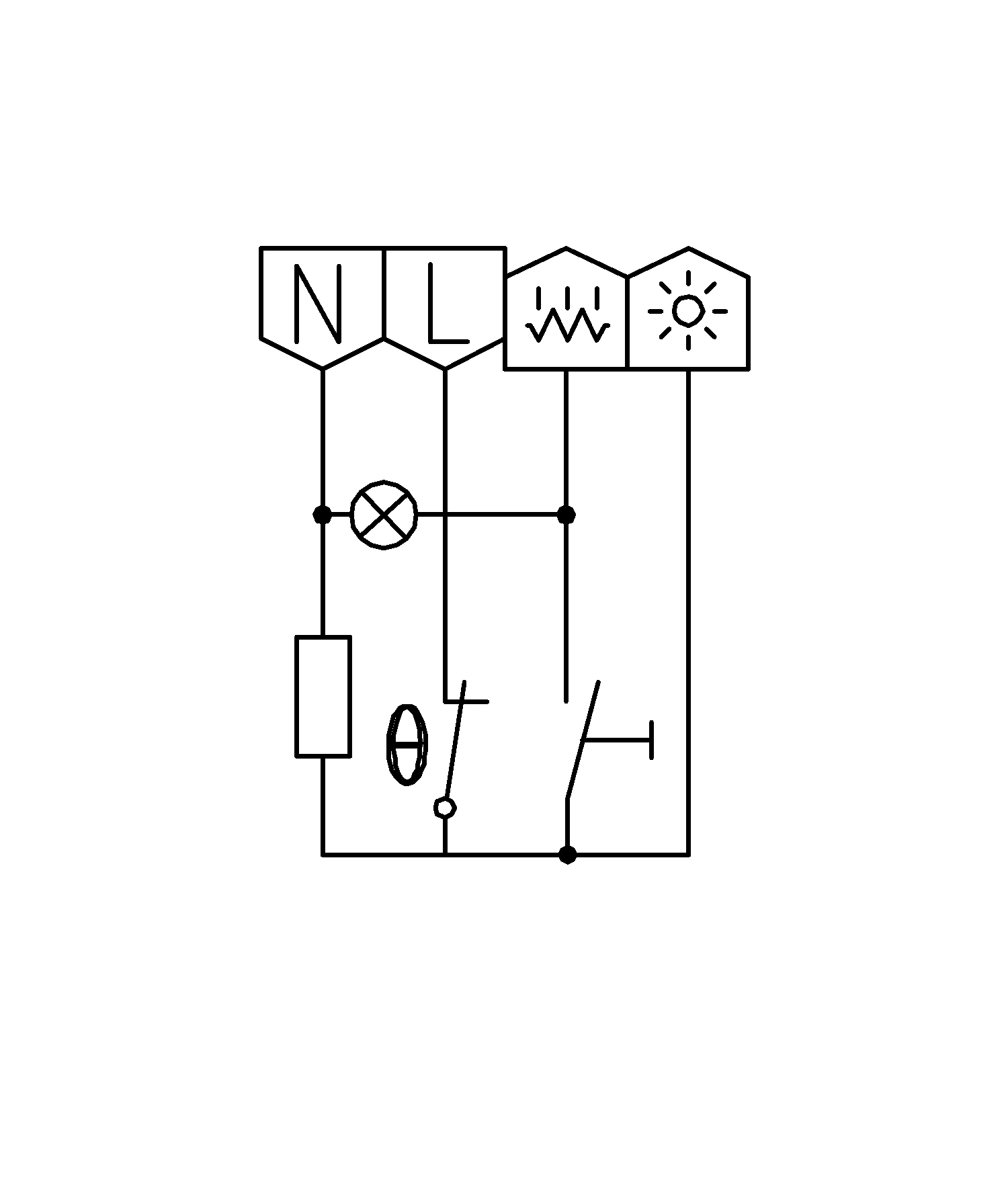

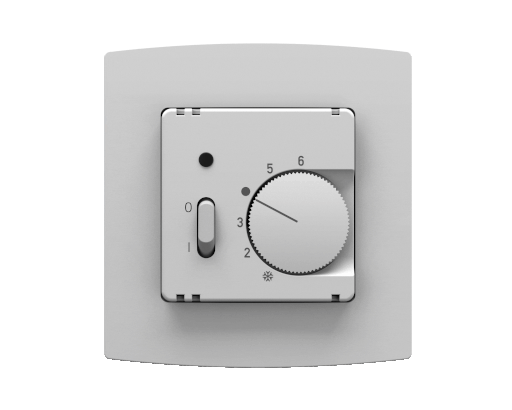

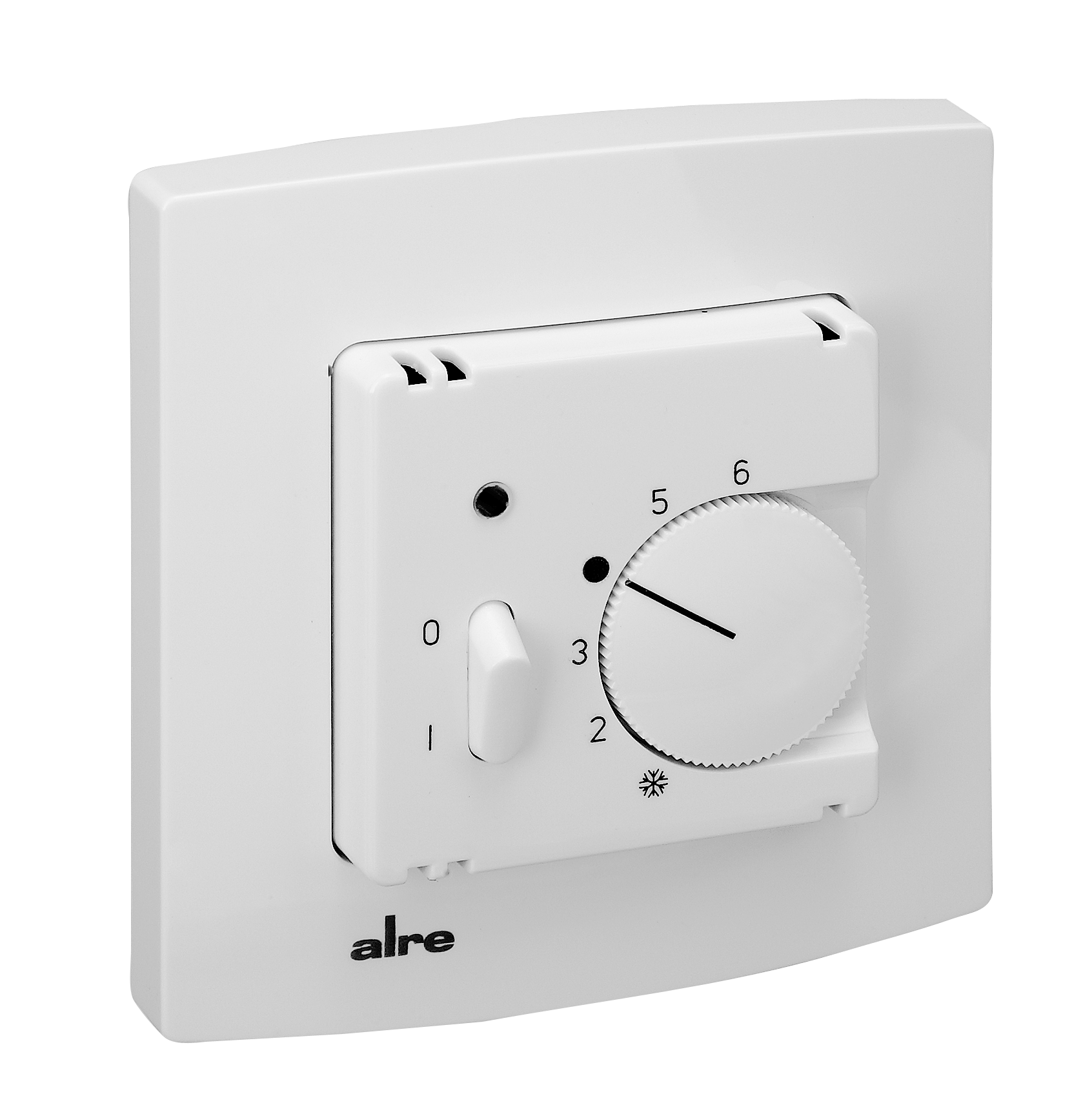

Flush-mounted room thermostat, 230 VAC, NC contact, display/switch for additional heating, alre frame, cover 50 x 50 mm, pure white, glossy
Electromechanical flush-mounted room thermostat for controlling or monitoring temperatures in offices, living rooms and hotels. Fits perfectly into many switch ranges without an intermediate frame. Suitable for all types of heating. The switch can be used to switch an additional heater. A red lamp indicates that additional heating has been switched on. The total current (heating + additional heating) must not exceed 10 (4) A. The total power (heating + additional heating) must not exceed 2300 W. A very precise switching differential is achieved through thermal feedback. The setting range can be changed using the range restriction located under the setting knob. Simple electrical connection without screws. New terminals for quick and easy installation. Simplified wiring thanks to color coding of the terminals. Time-saving thanks to modular design: practical assembly sequence of controller, frame and cover. Small installation volume for convenient and quick installation in the flush-mounted box. Temperature control already possible without cover. Closed design. Optimum screw mounting.
Installations-Tutorial
| Connection cross-section | 1 – 2,5 mm² (rigid) / 0,75 – 1,5 mm² (flex) |
|---|---|
| Number of outputs | 2, 2 |
| Number of outputs, heating | 2 |
| Number of control ranges | 1 |
| ECO display | No |
| Heating display | No |
| Additional heating display | Yes |
| Output signal | switching |
| External setting | Yes |
| Protective cap | No |
| Operation | rotary knob and switches |
| Operating voltage | 230 VAC, 50 Hz, 230 VAC, 50 Hz |
| Design | Berlin UP |
| ECO function (reduction) | No |
| Electric connection | spring push-lock terminals |
| Energy efficiency class | I |
| Colour | pure white |
| RAL colour number (similar) | 9010 |
| Sensor element | |
| Internal setting | No |
| Bearing temperature | –20 … 70 °C |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Housing material | plastic PA6, PC |
| Max. power consumption | < 0,5 W |
| Max. switching voltage | 230 VAC, 50 Hz |
| Max. switching current | 10 (4) A |
| Mechanical range reduction | Yes |
| Medium | Air |
| Min. switching voltage | 230 VAC, 50 Hz |
| Mounting/attachment | flush mounting (deep socket recommended) |
| Surface finish | gloss |
| Test mark approval | CE |
| Control range | 5 … 30 °C |
| Heating control function | Yes |
| Cooling control function | |
| Control behaviour | 2-point |
| Switching differential | 0,5 K (delta T max. 4 K/h) |
| Switching element | bimetal contact |
| Reduction switch | No |
| Reduction / heating / external reduction switch | No |
| On/Off switch | No |
| Heating/cooling switch | No |
| Heating/off/cooling switch | No |
| Additional heating switch | Yes |
| Switching contact | NC contact |
| Potential free switching contact | No |
| Switching power | 2300 W |
| Protection class | IP30 |
| Protection class | II, following appropriate mounting |
| Safety and EMC | in accordance with DIN EN 60730 |
| Scale | Index number scale |
| Thermal feedback | Yes |
| Ambient temperature | 0 … 30 °C |
| Assembly | complete device |
| Dimensions (W x H x D) | 81 mm x 85 mm x 41,8 mm |
