JMT-206 X

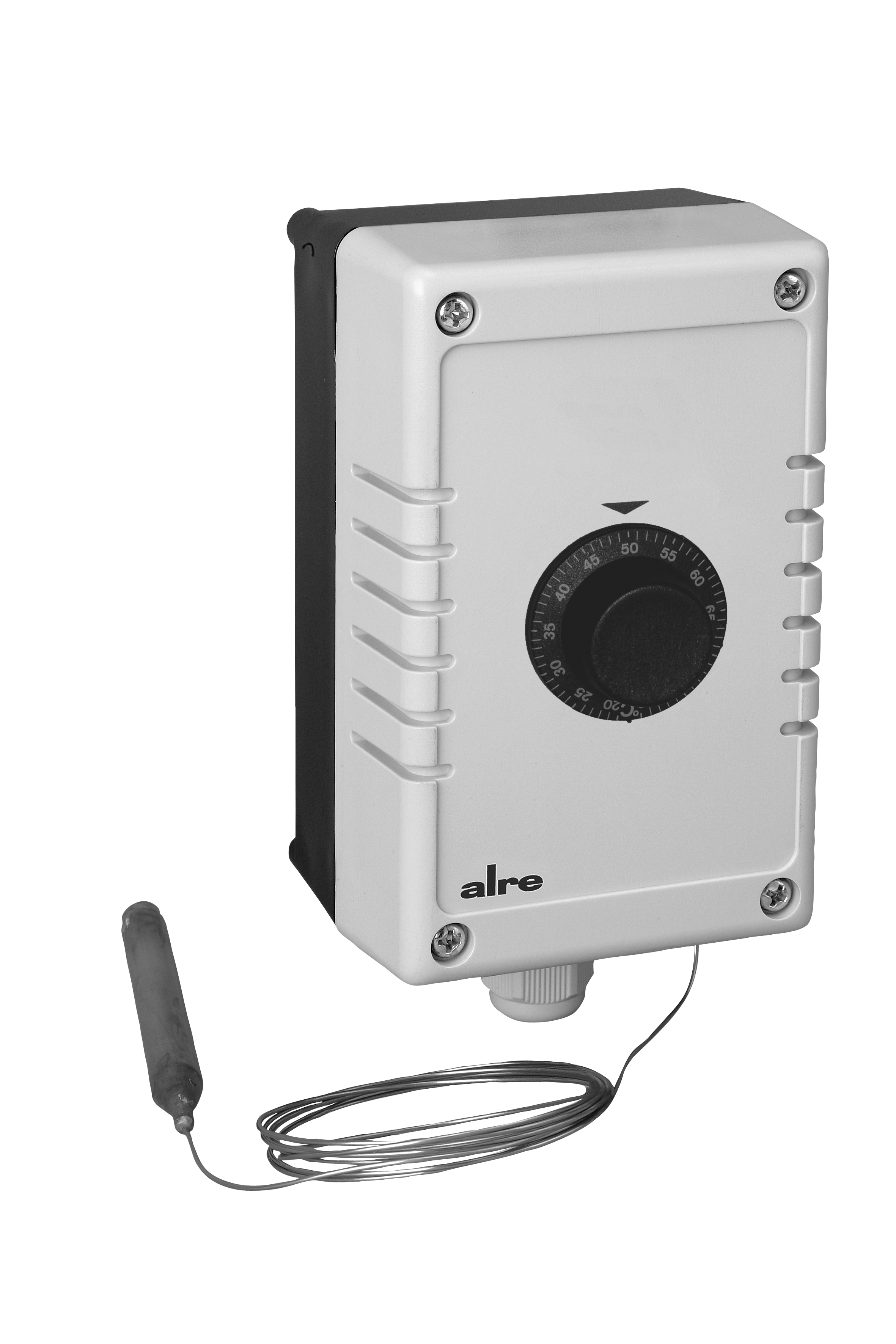

Capillary thermostat, wall mounting, 20…80 °C, 2-stage, switching differential between the stages adjustable 1…7 K, capillary length 1.5 m
Multi-stage control of the temperature of liquid or gaseous media, e.g. control of two-stage burners or heating registers. For temperature control of non-aggressive gases in the duct, the SW-200-12 thermowell must be used; for temperature control in non-aggressive fluids, the TH thermowell must be used; for aggressive fluids, the NTH thermowell must be used. Thermowells or protective coils are not included in the scope of delivery.
| Number of outputs | 4 |
|---|---|
| Number of control ranges | 1 |
| Output signal | switching |
| External setting | Yes |
| Operation | rotary knob |
| Rated impulse voltage | 4000 V |
| Diameter sensor element | 9.6 mm |
| Electric connection | screw terminals |
| Electronic control | No |
| With explosion protection | No |
| Colour | grey |
| RAL colour number (similar) | 7016/7035 |
| Sensor element | capillary tube |
| Function type (systems engineering) | TR |
| Device version | surface-mounted unit |
| Internal setting | No |
| Bearing temperature | –15 … 55 °C |
| Length of sensor | 122 mm |
| Capillary length | 1.5 m |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Sensor material | Cu |
| Housing material | plastic |
| Max. Sensor temperature | 90 °C |
| Max. switching voltage | 230 VAC, 50 Hz |
| Max. switching current | 15 (8) A |
| Min. switching voltage | 24 VAC, 50 Hz |
| Min. switching current | 150 mA |
| Mounting/attachment | wall mounting |
| Surface finish | matt |
| Control range | 20 … 80 °C |
| Heating control function | Yes |
| Cooling control function | Yes |
| Switching differential | Heating/cooling: 1 K |
| Switching element | microswitch |

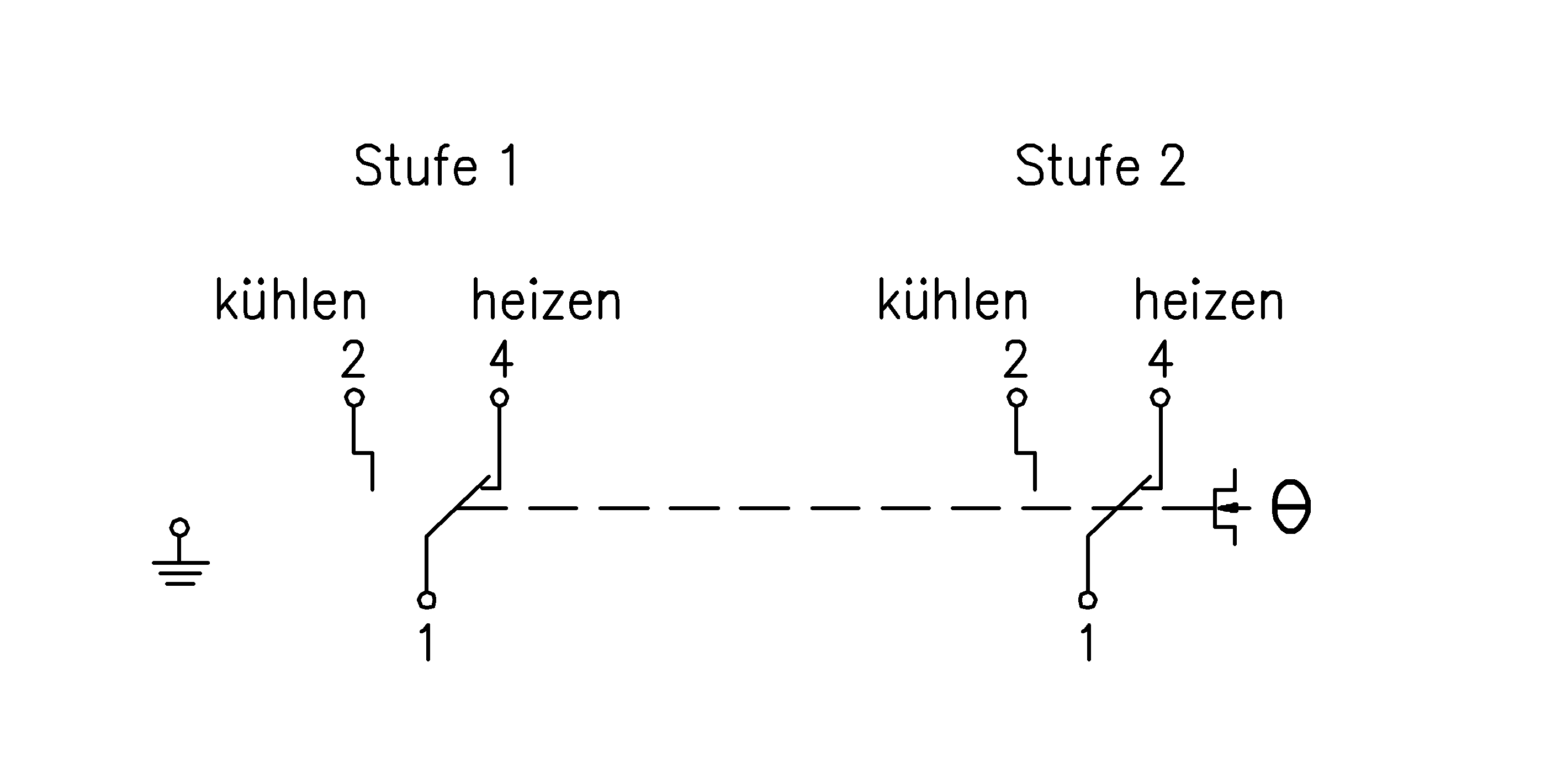

| Switching contact | two-way contact |
| Potential free switching contact | Yes |
| Switching power | 3450 W |
| Protection class | IP65 |
| Protection class | I |
| Safety and EMC | in accordance with DIN EN 60730 |
| Scale | Degree Celsius |
| Ambient temperature | −15 … 55 °C |
| Degree of contamination | 2 |

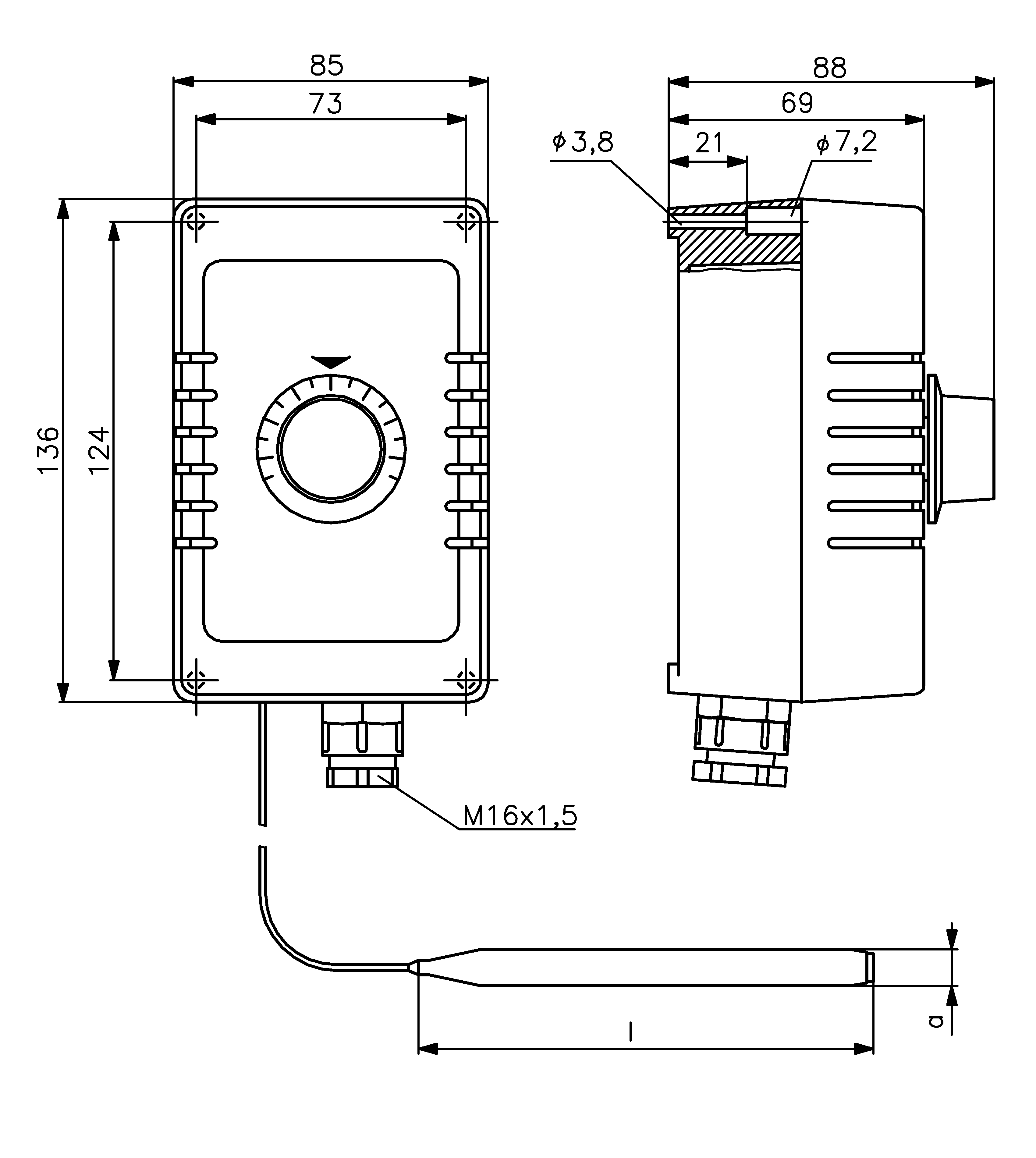

| Dimensions (W x H x D) | 85 mm x 136 mm x 88 mm |
Downloads
| User manual |
| RoHS declaration |
| BIM data |
