RTKSA-014.210

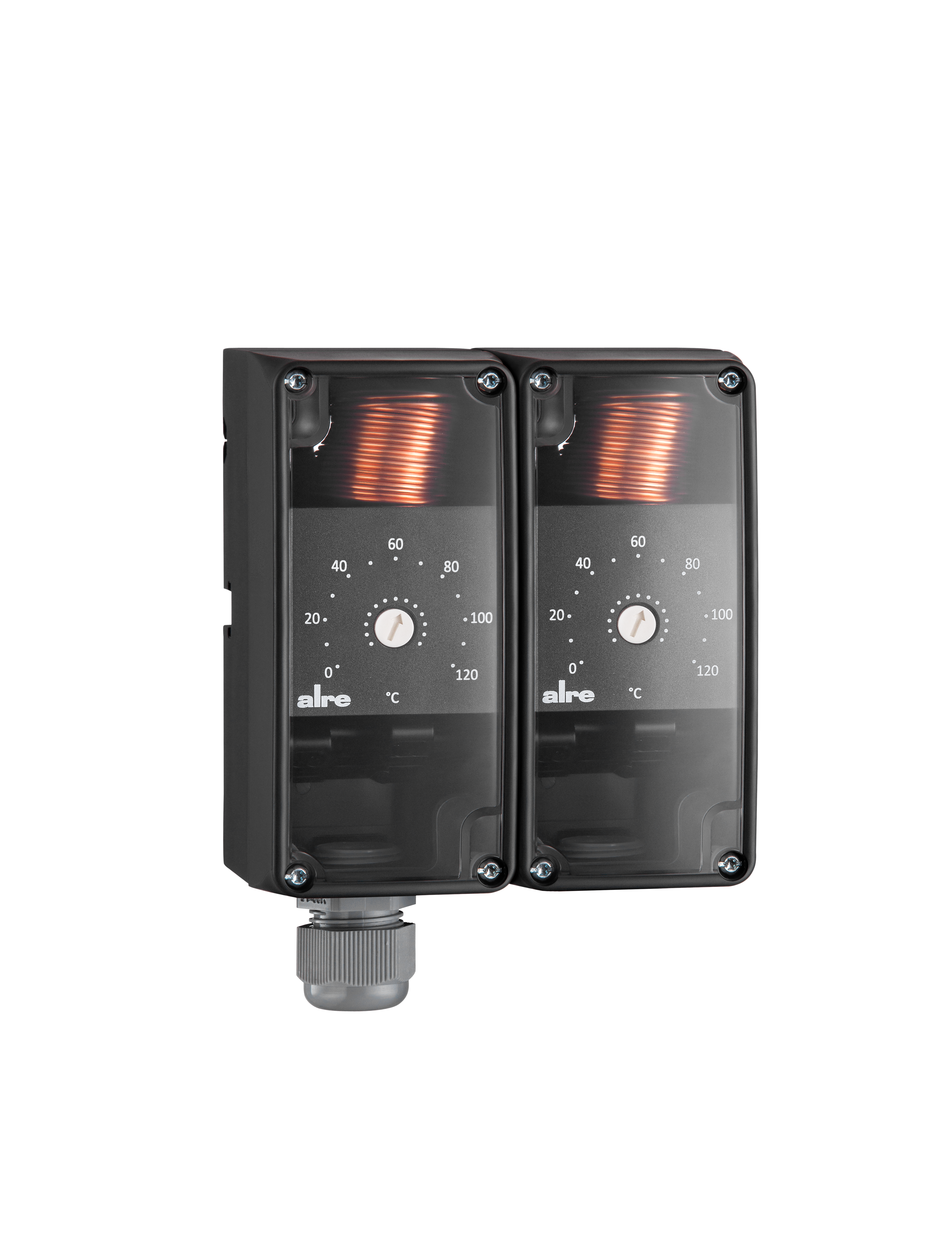

Universal capillary double thermostat, TW 0…120 °C, TW 0…120 °C, hysteresis 2x 3 K
This series of devices has been specially developed for use in heating technology in boiler systems or storage tanks, district heating transfer stations and heat transfer systems, in ventilation technology as supply air monitoring or as limiters for electric heating registers. Thermowells/protective coils are not included in the scope of delivery. The JZ-30 accessory must be used in conjunction with thermowells or protective coils.
The control range / hysteresis for both temperature monitors is 0…120 °C / 3 K.
| Number of outputs | 4 |
|---|---|
| Number of control ranges | 2 |
| Output signal | switching |
| External reset | No |
| Operation | internal setpoint adjuster |
| Diameter sensor element | 6 mm |
| Electric connection | Push-in clamp |
| Electronic control | No |
| With explosion protection | No |
| Colour | anthracite |
| Sensor element | capillary tube |
| Function type (systems engineering) | TW/TW |
| Device version | surface-mounted unit |
| Internal setting | Yes |
| Contact interlocking | No |
| Bearing temperature | –30 … 80 °C |
| Capillary length | 2 m |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Sensor material | Cu |
| Max. Sensor temperature | 138 °C |
| Max. switching voltage | 230 VAC, 50/60 Hz / 230 VDC |
| Max. switching current | 16 (2,5) A, 0,25 A |
| Min. switching voltage | 24 VAC, 50 Hz / 24 VDC |
| Min. switching current | at 24 V (AC/DC) min. 100 mA |
| Mounting/attachment | in imm. sleeve, prot. coil, on tube, etc |
| Control range | 0 … 120 °C |
| Heating control function | Yes |
| Cooling control function | Yes |
| Switching difference, can be adjusted | No |
| Switching element | microswitch |

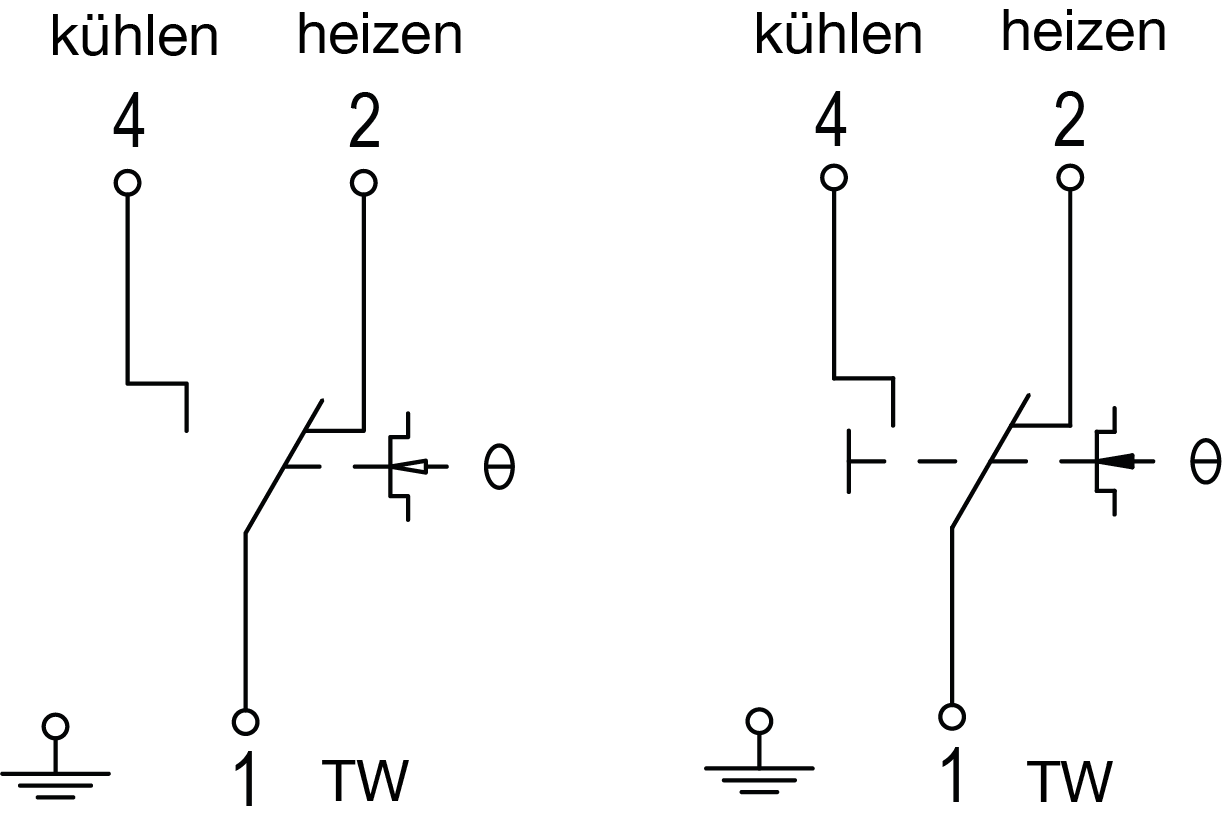

| Switching contact | 2 two-way contacts |
| Potential free switching contact | Yes |
| Protection class | IP54 |
| Protection class | I |
| Safety and EMC | in accordance with DIN EN 60730 |
| Scale | Degree Celsius |

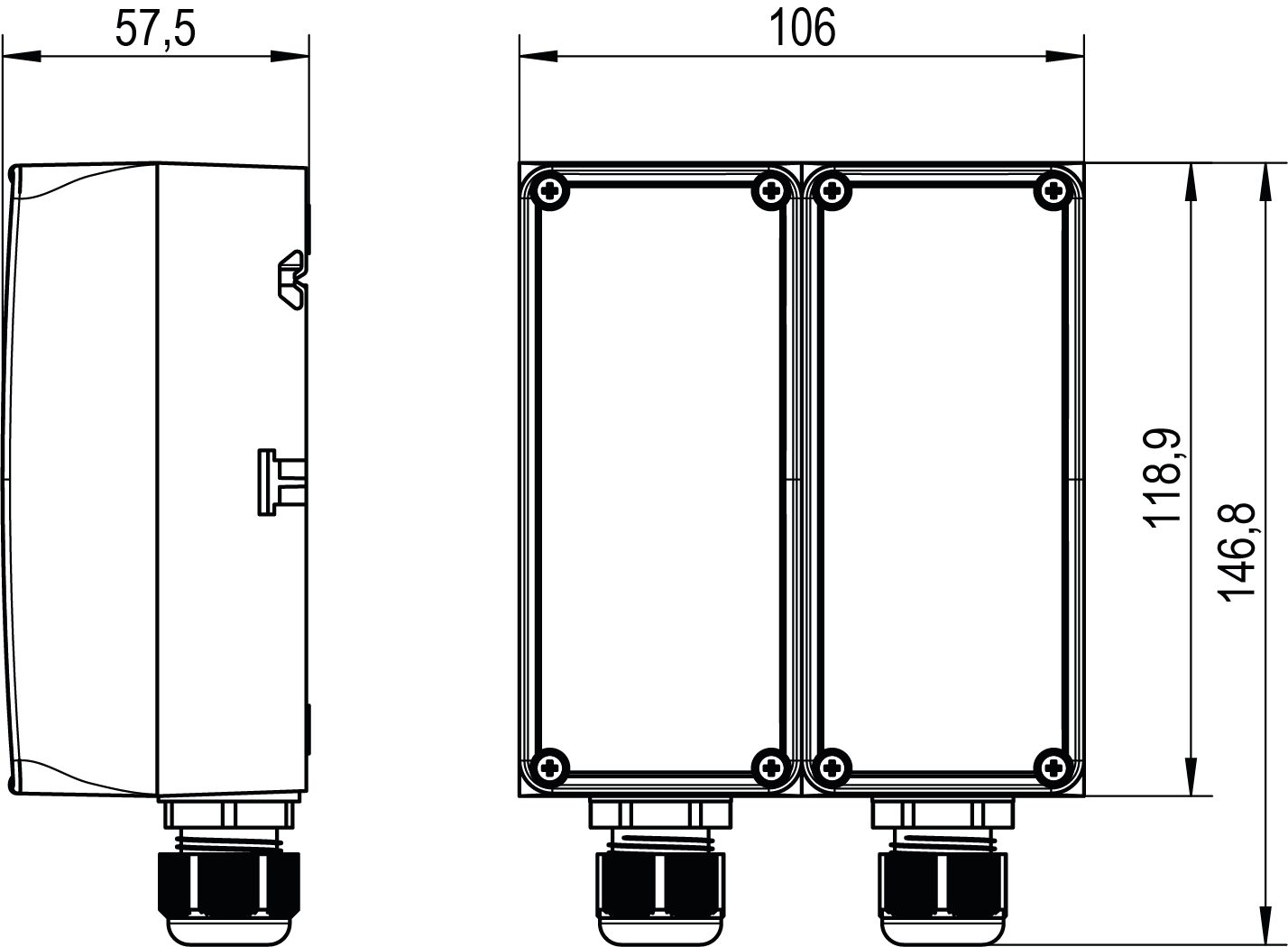

| Dimensions (W x H x D) | 106 mm x 146,8 mm x 57,5 mm |
