FHY 101.060#00

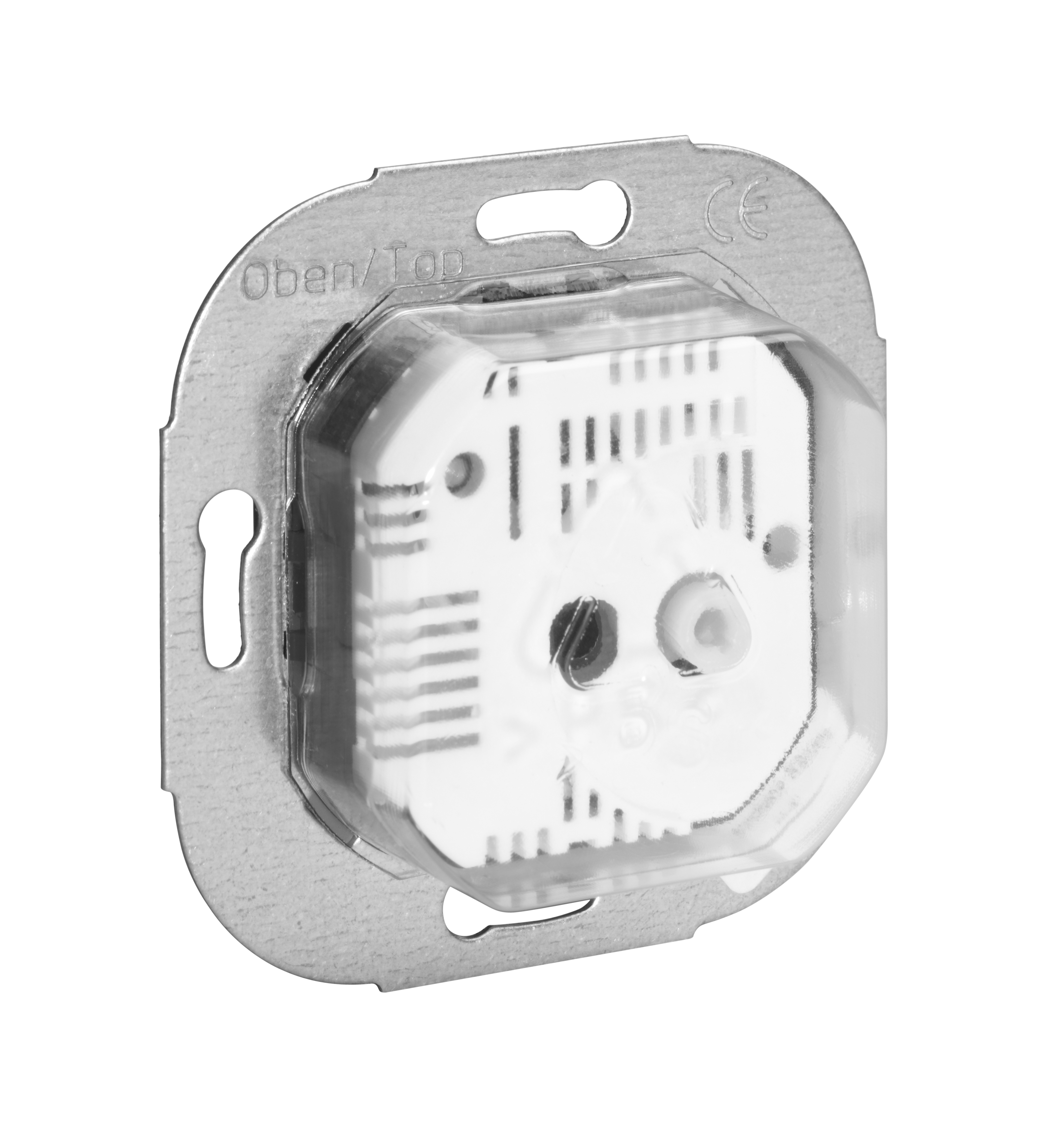

Room hygrostat, flush-mounted, 24 VAC to 230 VAC, 35…85 % r.H., changeover contact
The room hygrostat is designed for monitoring and controlling the relative humidity, e.g. in business premises, apartments, conservatories, bathrooms, swimming pools, IT rooms and other rooms with a clean, non-aggressive environment. A potential-free changeover contact is activated by the effect of the relative humidity on a measuring band. The setpoint value is set using the adjustment knob on the front. The setting range can be limited. With cover set 50 x 50 mm or 55 x 55 mm adaptable to almost all surface switch programs. Matching cover set no. JZ-021.xxx.
| Can be read off | No |
|---|---|
| Number of outputs | 2, 2 |
| Output signal | switching |
| External setting | Yes |
| Operation | |
| Design | Berlin UP |
| Relative humidity setting range | 35 … 85 % |
| Electric connection | screw terminals |
| Colour | anthracite |
| Sensor element | plastic fibres |
| Internal setting | No |
| Bearing temperature | –20 … 60 °C |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Housing material | plastic PC |
| Max. switching voltage | 230 VAC, 50 Hz |
| Max. switching current | dehumidify: 5 (0,2) A |
| Mechanical range reduction | Yes |
| Medium | |
| Min. switching voltage | 24 VAC, 50 Hz |
| Min. switching current | 100 mA |
| With thermostat | No |
| Mounting/attachment | flush mounting (deep socket recommended) |
| Surface finish | matt or gloss (see cover set) |
| Humidifying/dehumidifying control function | Yes |
| Heating control function | No |
| Cooling control function | No |
| Switching differential | 5 % r.H. |
| Switching difference, can be adjusted | No |
| Switching element | |
| On/Off switch | No |

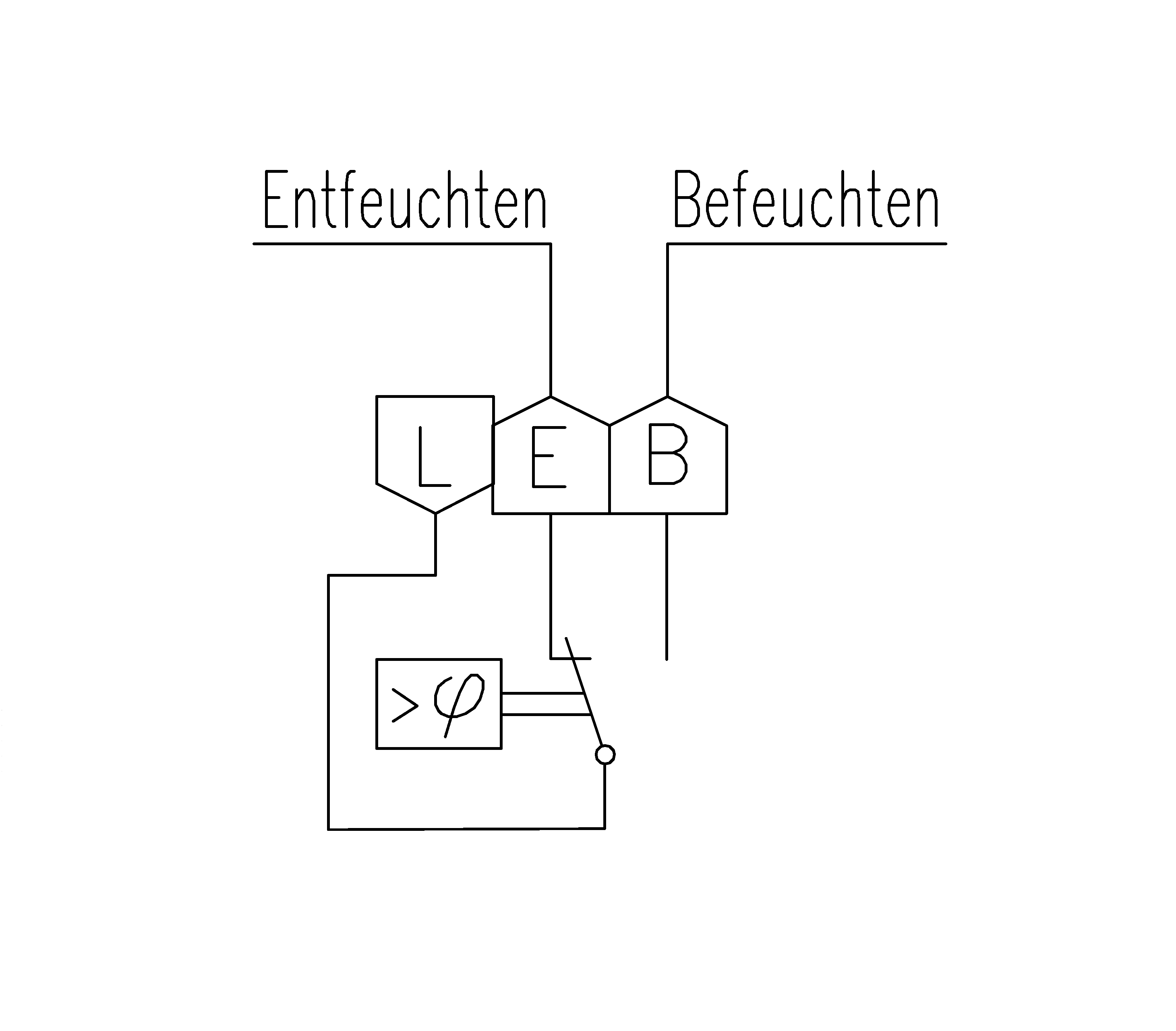

| Switching contact | two-way contact |
| Potential free switching contact | No |
| Switching power | 1150 W (230 VAC) / 460 W (230 VAC) |
| Protection class | IP30 |
| Protection class | II, following appropriate mounting |
| Safety and EMC | in accordance with DIN EN 60730 |
| Ambient temperature | 0 … 50 °C |
| Degree of contamination | 2 |
| Assembly | complete device |

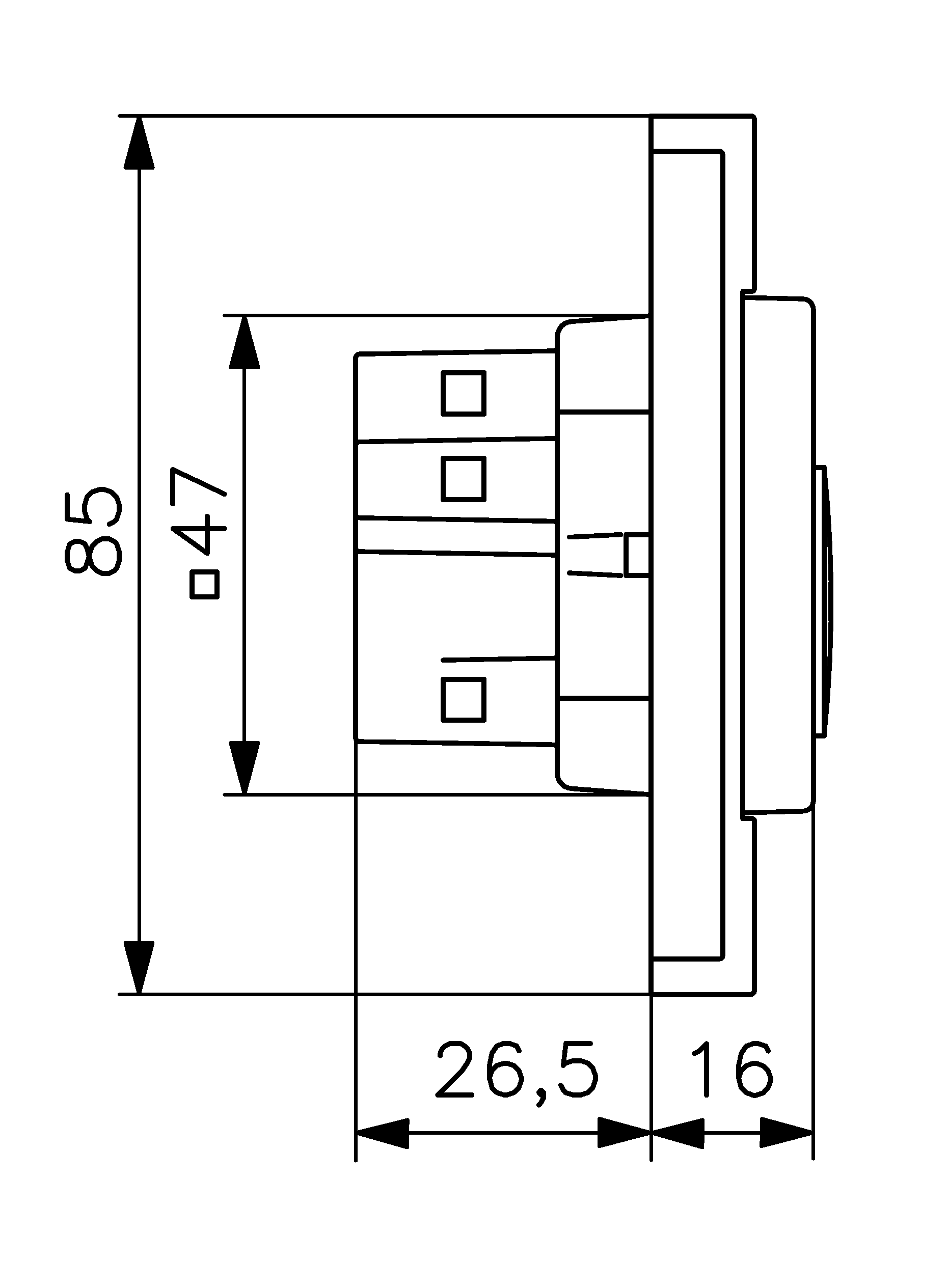

| Dimensions (W x H x D) | 71 mm x 71 mm x 42,5 mm |
Loading specification text...
| Photo | Type | Art. no. | Features | |
|---|---|---|---|---|
 | JZ-021.100 | UN990054 | Cover set for room humidistat FHY, 55 x 55, pure white (RAL9010), glossy | View product |
| JZ-021.101 | UN990059 | Cover set for room humidistat FHY, 55 x 55, pure white (RAL9010), matt | View product |
| JZ-021.110 | UN990064 | Cover set for room humidistat FHY, 55 x 55, pearl white (RAL1013), glossy | View product |
| JZ-021.120 | UN990096 | Cover set for room humidistat FHY, 55 x 55, traffic/studio white (RAL9016), glossy | View product |
 | JZ-021.000 | UN990039 | Cover set for room humidistat FHY, 50 x 50, pure white (RAL9010), glossy | View product |
| JZ-021.001 | UN990044 | Cover set for room humidistat FHY, 50 x 50, pure white (RAL9010), matt | View product |
| JZ-021.010 | UN990049 | Cover set for room humidistat FHY, 50 x 50, pearl white (RAL1013), glossy | View product |
| JZ-021.020 | UN990081 | Cover set for room humidistat FHY, 50 x 50, traffic/studio white (RAL9016), glossy | View product |
 | JZ-090.910 | VV000010 | alre frame, 50 x 50, pearl white (RAL1013), glossy | View product |
| JZ-090.900 | VV000025 | alre frame, 50 x 50, pure white (RAL9010), glossy | View product |
