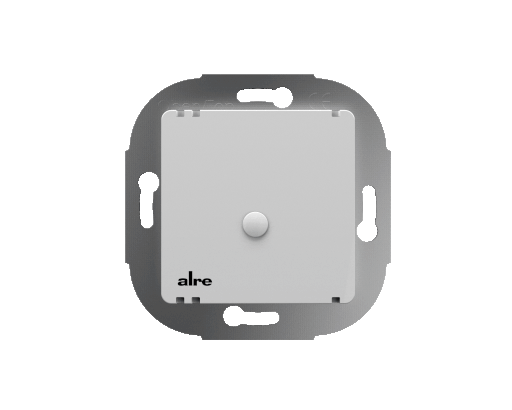

RTBSU-401.902#07

Electromechanical flush-mounted room thermostat for controlling or monitoring temperatures in offices, living rooms and hotels. Fits into almost all switch ranges by means of an intermediate frame. The controller has an internal setpoint adjustment. This makes it particularly suitable for installation in public authorities, banks, schools, kindergartens, museums and similar buildings where setpoint adjustment by unauthorized persons is to be prevented. Suitable for water-bearing heating systems. A very precise switching differential is achieved through thermal feedback. The setting range can be changed using the range restriction located under the setting knob. When the ECO terminal is connected to 24 with 230 VAC (e.g. with a clock controller or time switch), the temperature is regulated to approx. 4 K lower. Simple electrical connection without screws. New terminals for quick and easy installation. Simplified wiring thanks to color coding of the terminals. Time saving thanks to modular principle: practical sequence of installation of controller, frame and cover. Small installation volume for convenient and quick installation in the flush-mounted box. Temperature control already possible without cover. Closed design. Optimum screw mounting.
