RTBSS-112.211/12

Control cabinet thermostat, 0…60 °C, changeover contact

Control cabinet temperature controller especially for monitoring and controlling the temperature in control cabinets, drinks or cash dispensers. UL and VDE approved.

The thermal feedback achieves a very low hysteresis of approx. 1 K.


SKU: ZN113152 Categories: , ,
Add to wishlist
Compare

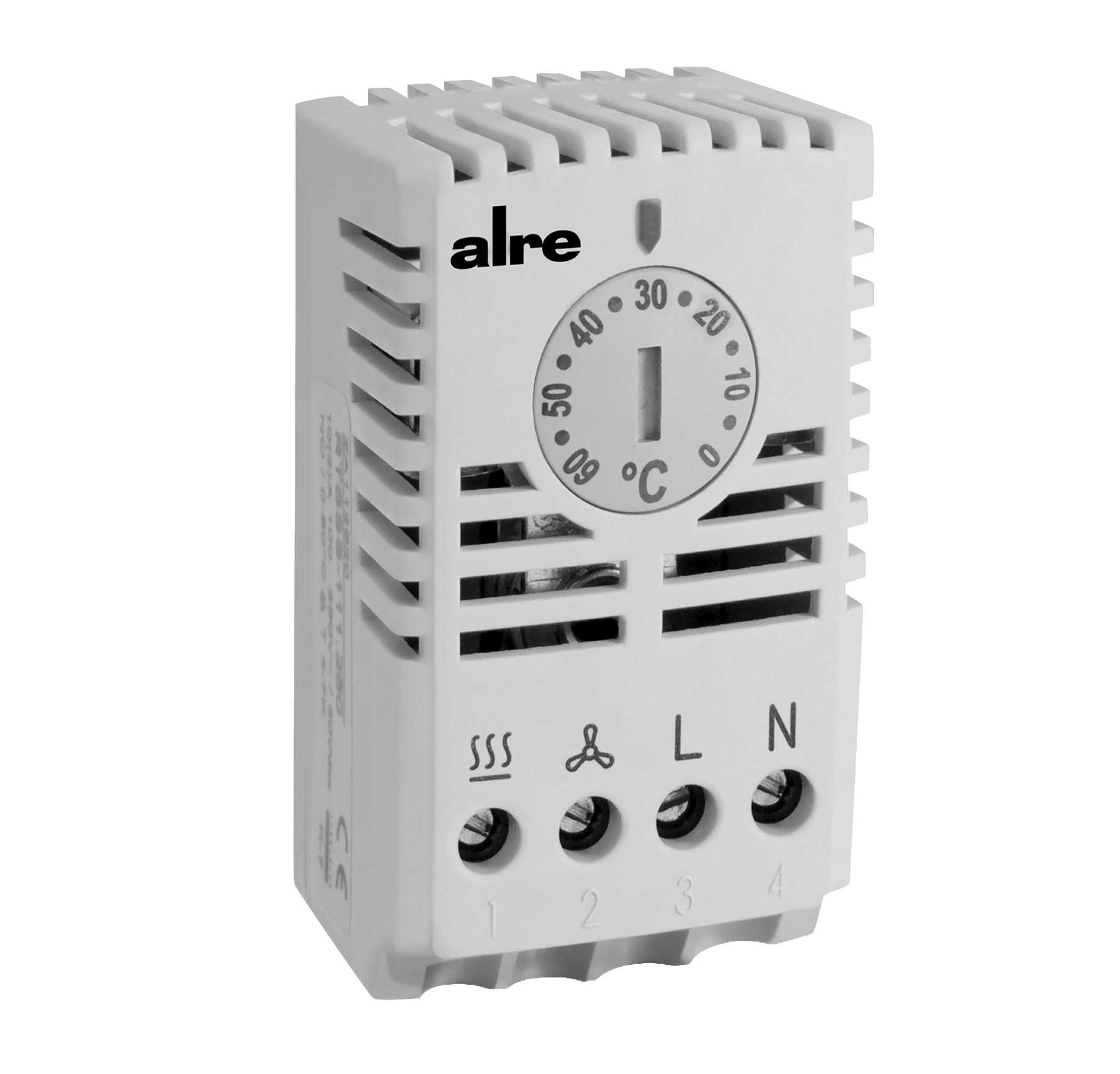

RTBSS-112.211/12 — produktbild

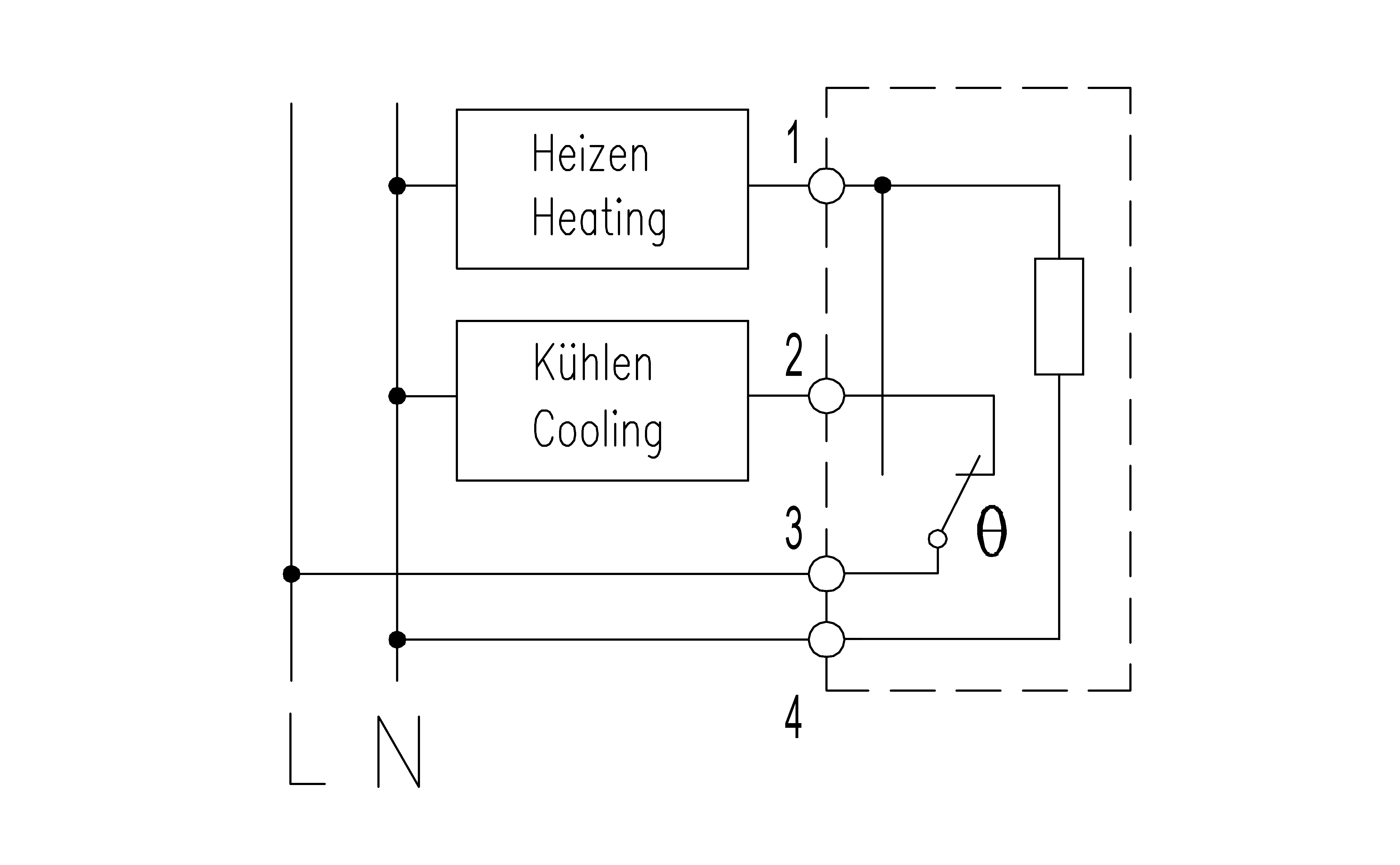

RTBSS-112.211/12 — anschlussbild
RTBSS-112.211/12 — masszeichnung
Click to enlarge
    RTBSS-112.211/12 — produktbild
    RTBSS-112.211/12 — anschlussbild
    RTBSS-112.211/12 — masszeichnung
    Connection cross-section0,5 – 2,5 mm²
    Number of outputs2, 2
    Number of control ranges1
    External settingYes
    Operation
    Electric connectionscrew terminals
    Colourgrey
    RAL colour number (similar)7035
    Sensor element
    Bearing temperature–20 … 80 °C
    Max. air humidity (non-condensing)95 % r.H.
    Housing materialplastic PA6
    Max. switching voltage230 VAC, 50 Hz
    Max. switching current10 (2) A (230 VAC), 1,25 A (24 VDC), 0,625 A (48 VDC)
    Medium
    Min. switching voltage24 VAC, 50 Hz / 24 VDC
    Mounting/attachmenton supporting rails (35 mm), EN 60715
    Surface finishmatt, matt
    Test mark approvalCE, UL, VDE
    Control range0 … 60 °C, 0 … 60 °C
    Heating control functionYes
    Cooling control functionYes
    Switching differential1 K
    Switching elementbimetal contact
    Switching contacttwo-way contact
    Switching power2300 W (230 VAC) / 1150 W (230 VAC)
    Protection class
    Protection class0, determined by the assembly location
    Safety and EMCin accordance with DIN EN 60730
    ScaleDegree Celsius
    Ambient temperature0 … 60 °C
    Dimensions (W x H x D)37 mm x 64 mm x 46 mm

    Downloads

    Installation manual
    RoHS declaration
    BIM data
