RTBSB-001.411

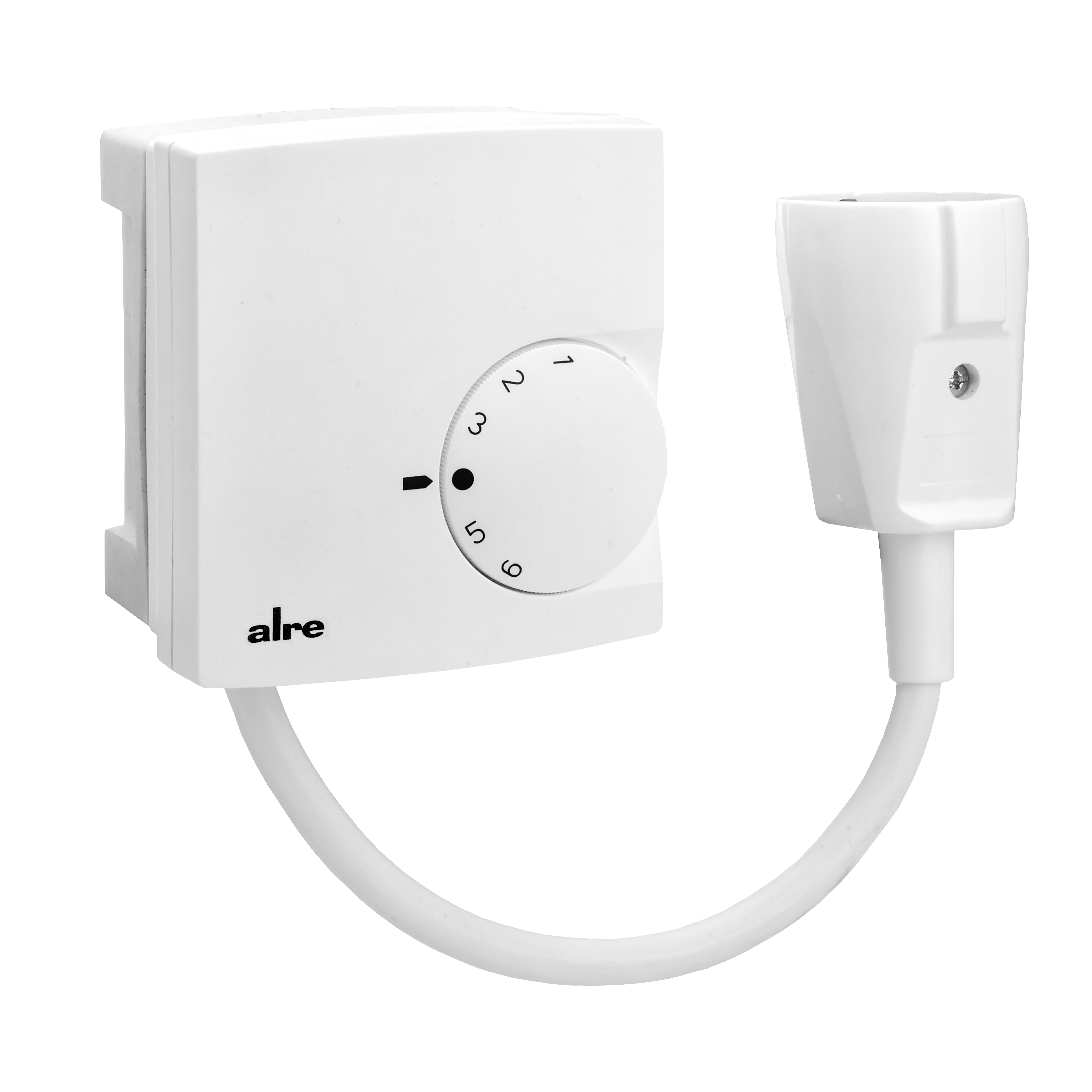

Room thermostat, ready to plug in, 5…30 °C, 230 VAC, 13 (4) A, 1.5 m cable
Electromechanical room thermostat for radiators, fireplaces, direct electric heating systems, marble heating systems, natural stone heating systems, etc.. The temperature setting range can be mechanically limited by means of the setting lugs located under the knob. The length of the connection cable is 1.5 m.

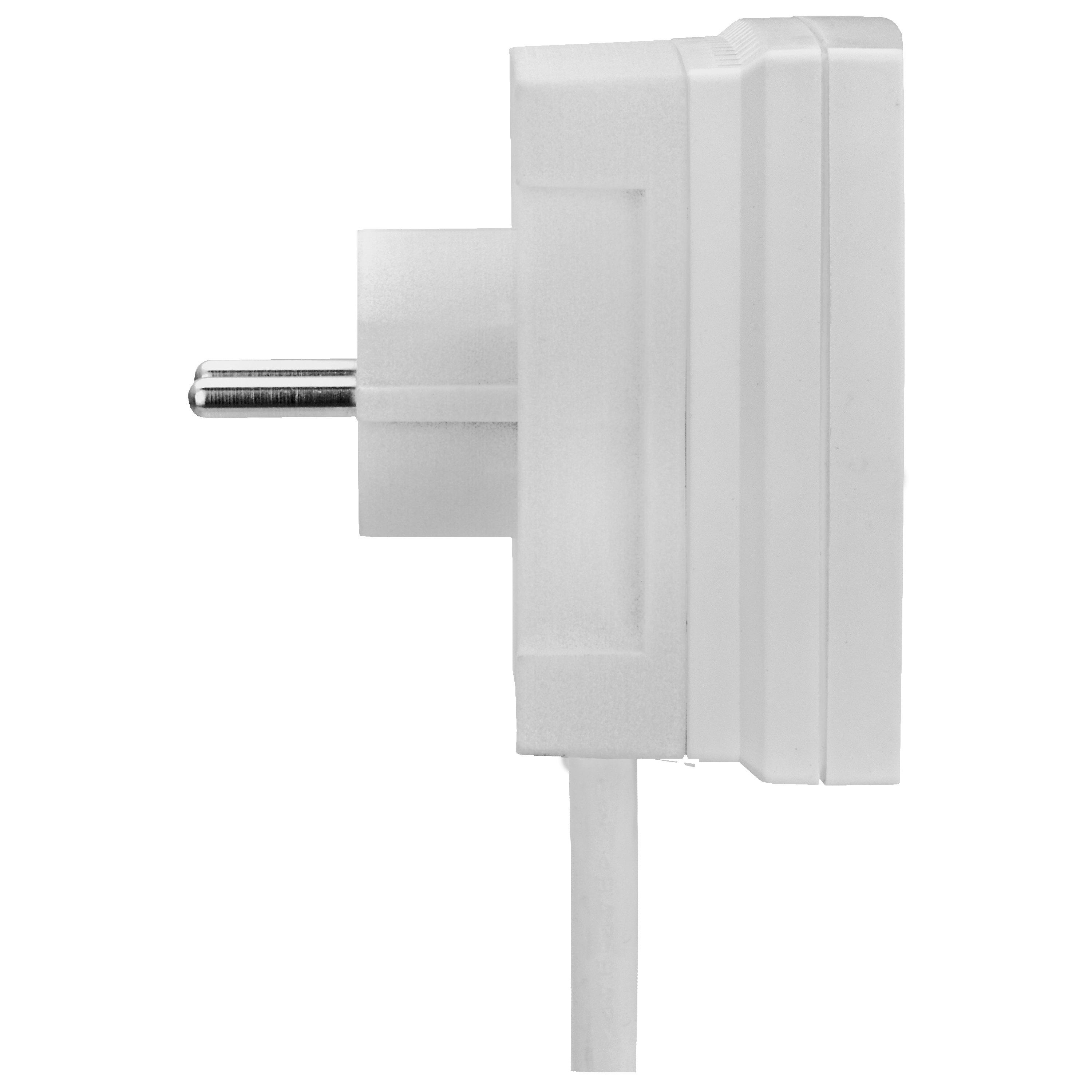

With pre-assembled earthing contact plug socket JZ-19 on the controller and cable with earthing contact coupling.
| Number of outputs | 1 |
|---|---|
| Number of outputs, heating | 1 |
| Number of control ranges | 1 |
| Output signal | switching |
| External setting | Yes |
| Operation | |
| Operating voltage | 230 VAC, 50 Hz |
| Design | Berlin 2000 |
| Average power consumption | 0.1 W |
| ECO function (reduction) | No |
| Electric connection | protective contact receptacle |
| Energy efficiency class | I |
| Colour | |
| RAL colour number (similar) | 9010 |
| Sensor element | |
| Bearing temperature | –20 … 70 °C |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Housing material | plastic ABS |
| Max. switching voltage | 230 VAC, 50 Hz |
| Max. switching current | 13 (4) A |
| Mechanical range reduction | Yes |
| Medium | |
| Min. switching voltage | 230 VAC, 50 Hz |
| Mounting/attachment | ready for connection |
| Surface finish | matt, matt |
| Control range | |
| Heating control function | Yes |
| Cooling control function | No |
| Control behaviour | 2-point |
| Switching differential | 1 K (delta T max. 4 K/h) |
| Switching element | bimetal contact |
| On/Off switch | No |
| Heating/cooling switch | No |
| Additional heating switch | No |
| Switch/lamp night-time reduction | No |
| Switching contact | NC contact |
| Potential free switching contact | No |
| Switching power | 3000 W |
| Protection class | IP30 |
| Protection class | II, following appropriate mounting |
| Safety and EMC | in accordance with DIN EN 60730 |
| Scale | Index number scale 1…6 |
| Thermal feedback | Yes |
| Ambient temperature | 0 … 30 °C |
| Assembly | complete device |

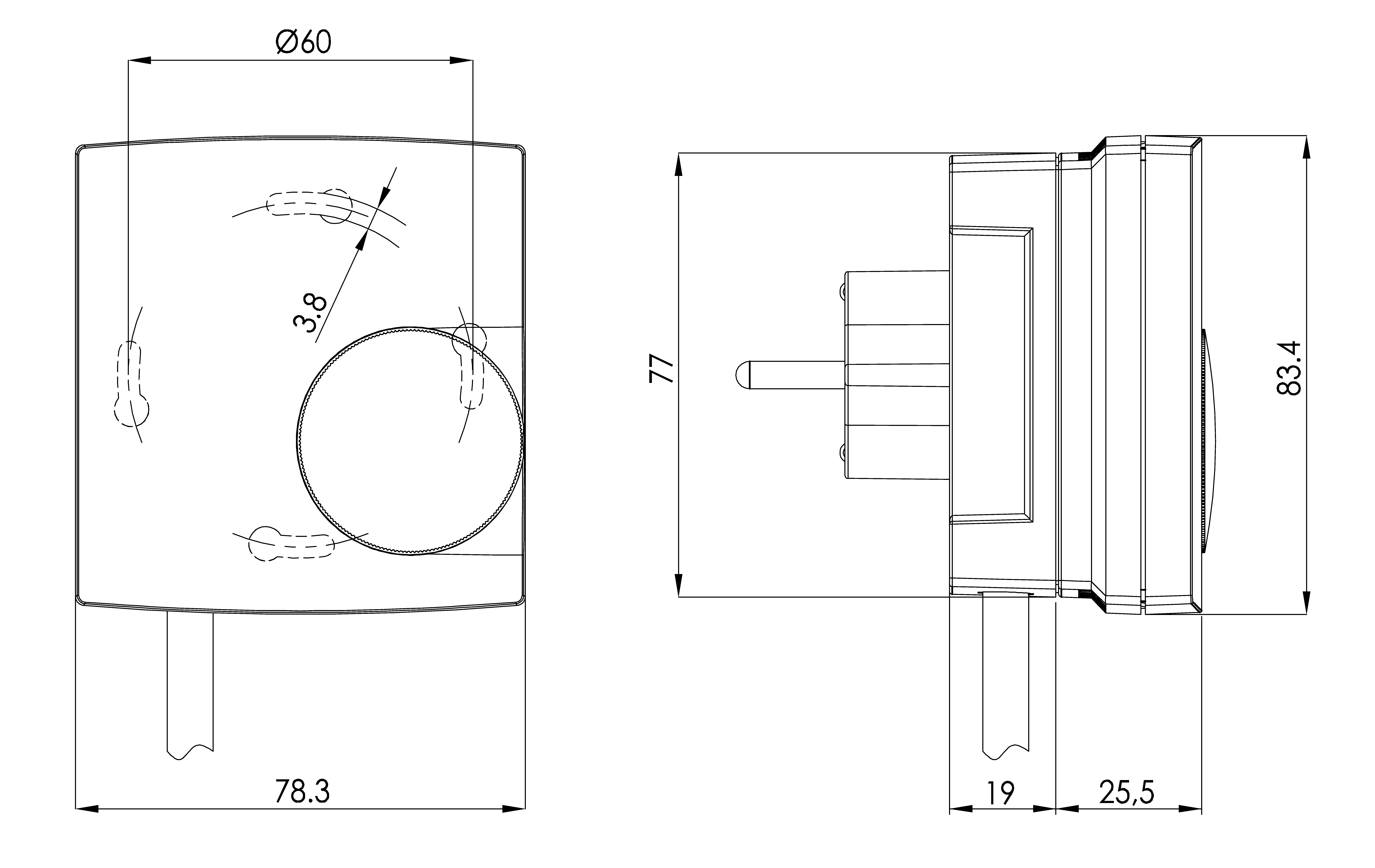

| Dimensions (W x H x D) | 78,3 mm x 83,4 mm x 44,5 mm |
