RTBSB-001.202
Room thermostat, surface-mounted, 5…30 °C, 24 VAC, NC contact, ECO function
Electromechanical room thermostat in surface-mounted housing for controlling or monitoring temperatures in offices, living rooms and hotels. Suitable for hot water heating systems. A very precise switching differential is achieved through thermal feedback. The setting range can be changed using the range restriction located under the setting knob. When the ECO terminal is connected to 24 VAC (e.g. with a clock controller or time switch), the temperature is regulated to approx. 4 K lower.

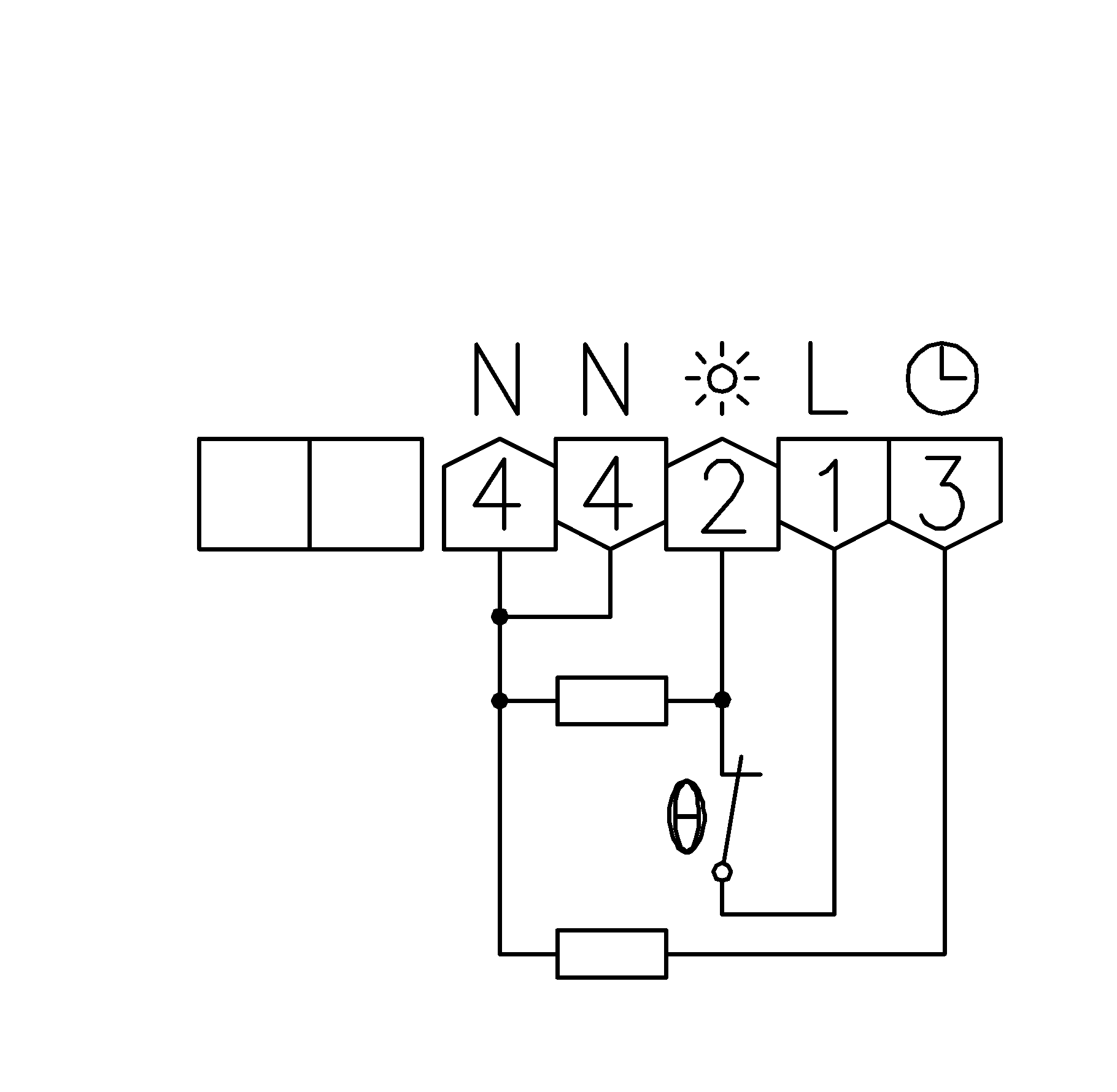

| Connection cross-section | 0,12 – 2,5 mm² |
|---|---|
| Number of outputs | 1, 1 |
| Number of outputs, heating | 1 |
| Number of control ranges | 1 |
| Heating display | No |
| Output signal | switching |
| External setting | Yes |
| Operation | rotary knob |
| Operating voltage | 24 VAC, 50 Hz, 24 VAC, 50 Hz |
| Design | Berlin 2000, Berlin 2000 |
| ECO input (reduction) | 24 VAC, 50 Hz |
| ECO function (reduction) | Yes |
| ECO temperature reduction | approx. 4 K |
| Electric connection | screw terminals |
| Energy efficiency class | I |
| Colour | pure white |
| RAL colour number (similar) | 9010 |
| Sensor element | |
| Internal setting | No |
| Bearing temperature | –20 … 70 °C |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Housing material | plastic ABS |
| Max. power consumption | < 0,5 W |
| Max. switching voltage | 24 VAC, 50 Hz |
| Max. switching current | 1 (1) A |
| Mechanical range reduction | Yes |
| Medium | Air |
| Min. switching voltage | 24 VAC, 50 Hz |
| Mounting/attachment | surface mounting |
| Surface finish | matt, matt |
| Test mark approval | CE |
| Control range | 5 … 30 °C |
| Heating control function | Yes |
| Cooling control function | |
| Control behaviour | 2-point |
| Switching differential | 0,5 K (delta T max. 4 K/h) |
| Switching element | bimetal contact |
| On/Off switch | No |
| Heating/cooling switch | No |
| Switching contact | NC contact |
| Potential free switching contact | No |
| Switching power | 24 W |
| Protection class | IP30 |
| Protection class | III |
| Safety and EMC | in accordance with DIN EN 60730 |
| Scale | Degree Celsius |
| Thermal feedback | Yes |
| Ambient temperature | 0 … 30 °C |
| Assembly | complete device |
| Dimensions (W x H x D) | 78,3 mm x 83,4 mm x 25,5 mm |
