LG 9/30

Power switchgear 21 kW for sauna control units Saunatherm VU / Hygrotherm VU

Power switching unit 21 kW (max. 7 kW per phase) This allows all control units to be extended from 9 kW to 30 kW switching capacity (9 kW via control unit + 21 kW via load switching unit = 30 kW total capacity).


SKU: H4690008 Categories: , ,
Add to wishlist
Compare

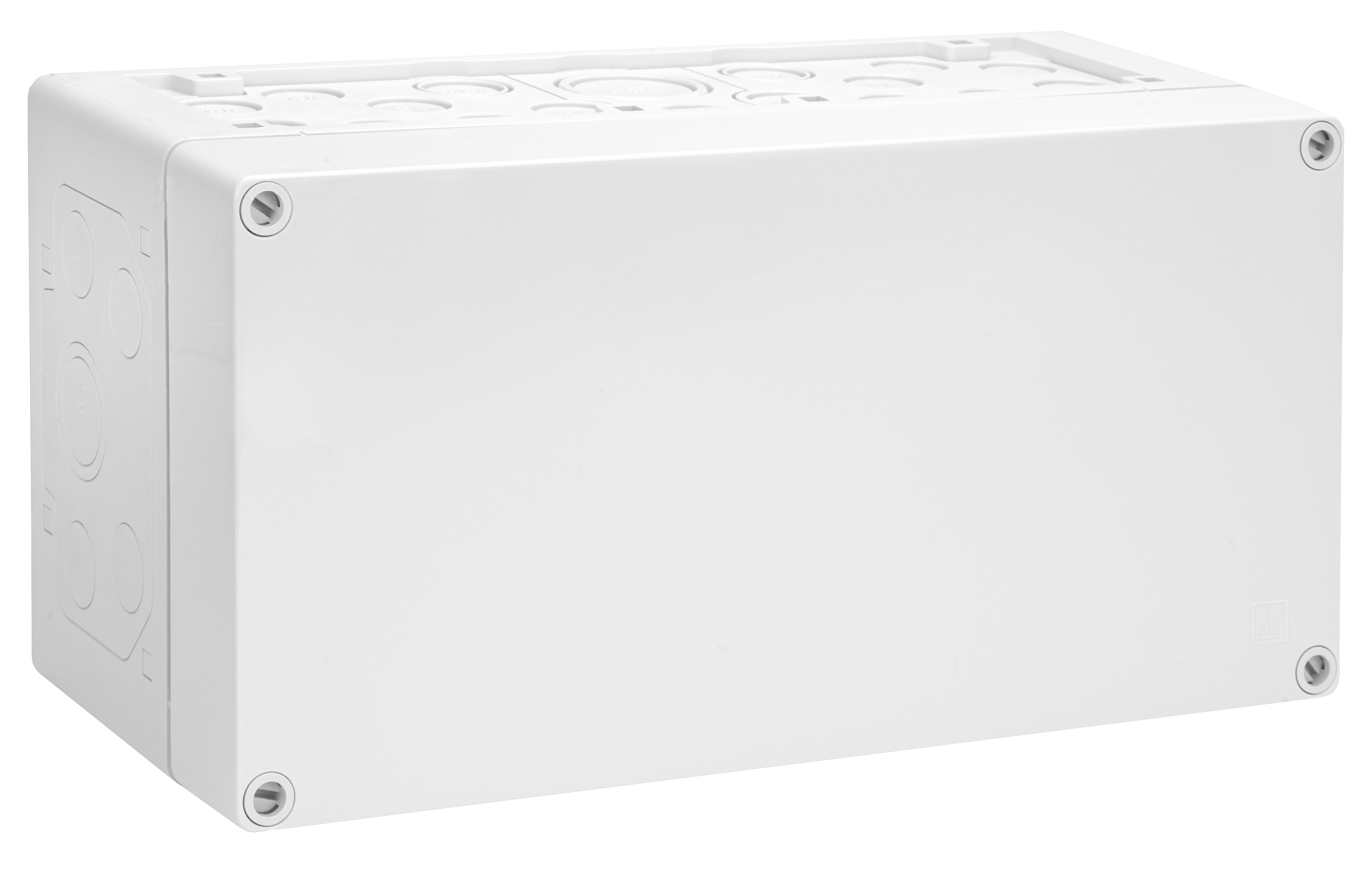

LG 9/30 — produktbild
LG 9/30 — anschlussbild
LG 9/30 — masszeichnung
Click to enlarge
    LG 9/30 — produktbild
    LG 9/30 — anschlussbild
    LG 9/30 — masszeichnung
    Type of accessories/spare partpower switching device
    Electric connectionscrew terminals
    Colour
    RAL colour number (similar)9001
    Max. air humidity (non-condensing)95 % r.H.
    Housing materialplastic ABS
    Mounting/attachmentsurface mounting
    Protection classIP44
    Protection classII, following appropriate mounting
    Dimensions (W x H x D)250 mm x 160 mm x 120 mm
