JPS-3 B

Universal pressure switch with 2 switching ranges. With SW17 hexagonal connection piece with 1/4″ internal thread.

The JSP is a universal pressure switch with 2 switching ranges, starter button and indicator lamp and is suitable for oil, water and air. It can also be used as a regulator for controlling and monitoring in domestic oil supply systems, for pressure boosting systems, oil feed pumps, etc.


SKU: E6160044 Categories: , ,
Add to wishlist
Compare

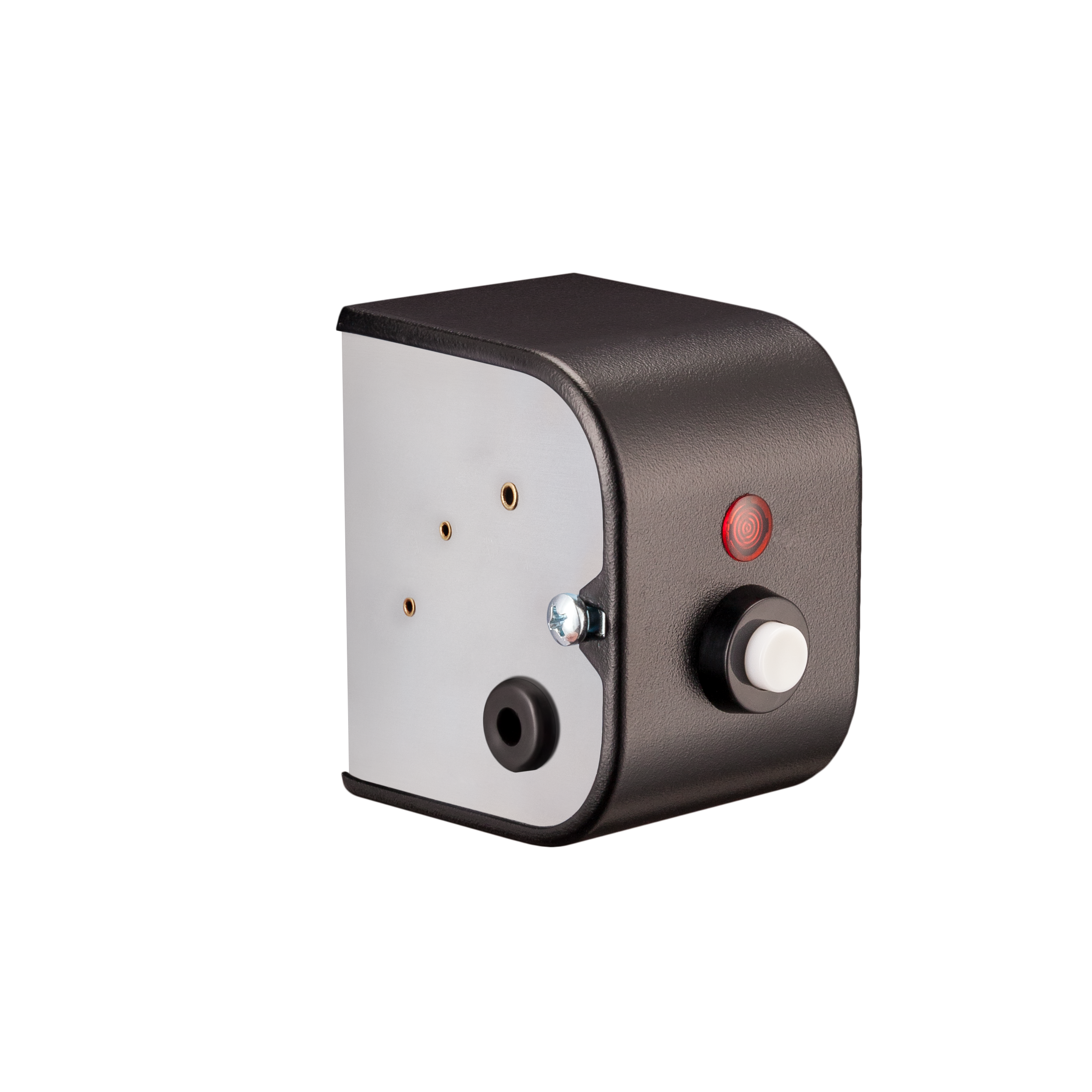

JPS-3 B — produktbild

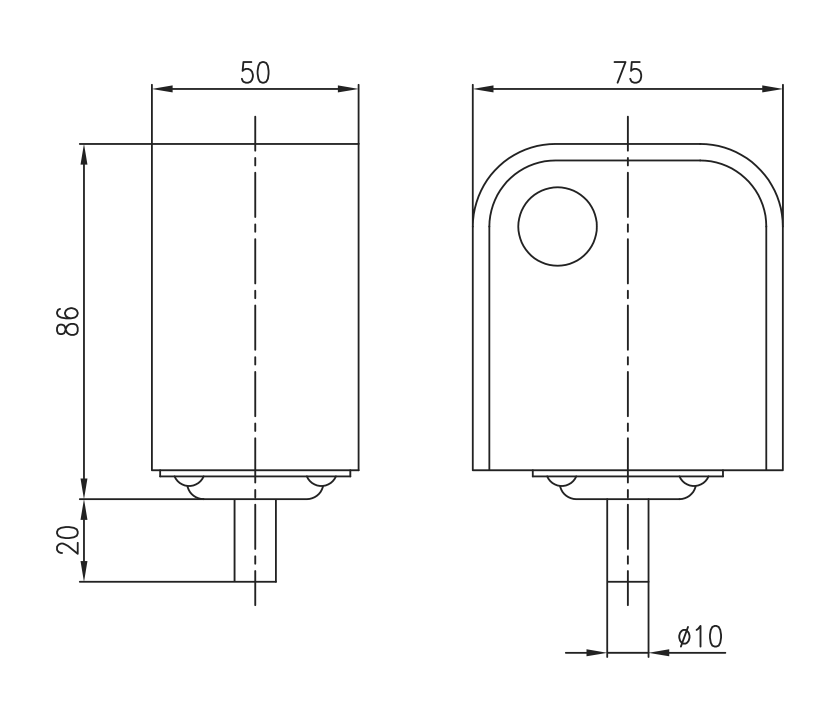

JPS-3 B — masszeichnung

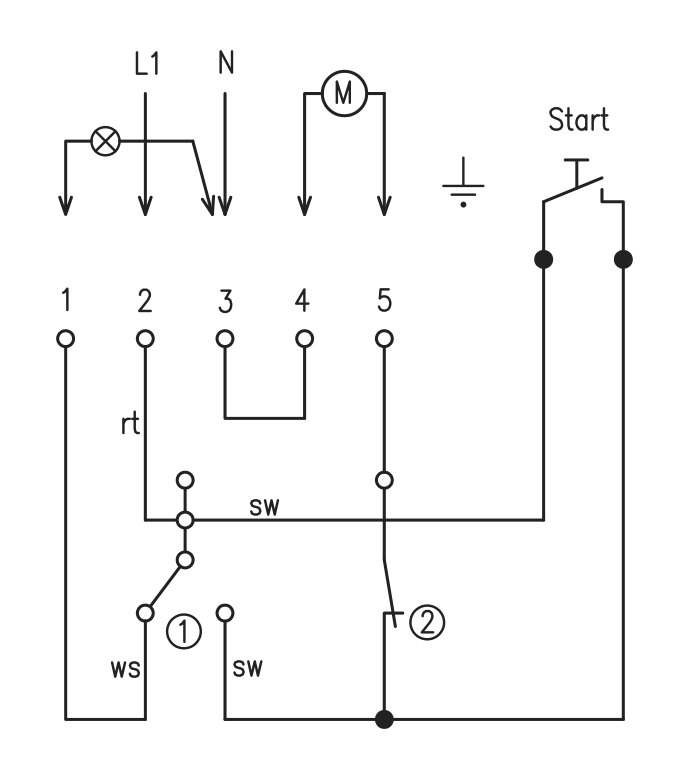

JPS-3 B — schaltbild
Click to enlarge
    JPS-3 B — produktbild
    JPS-3 B — masszeichnung
    JPS-3 B — schaltbild
    Operationinternal setpoint adjuster, start button
    Electric connectionscrew terminals
    Electronic versionNo
    With explosion protectionNo
    Sensor elementpressure membrane
    Function type (systems engineering)monitor
    Internal settingYes
    Housing materialMetal sheet steel
    Max. switching voltage230 VAC, 50 Hz
    Max. switching current2 (2) A
    Medium temperature−30 … 80 °C
    With LED displayYes
    Switching contacttwo-way contact
    Protection classIP10

    Downloads

    User manual
    RoHS declaration
    BIM data
