JET-130 XF

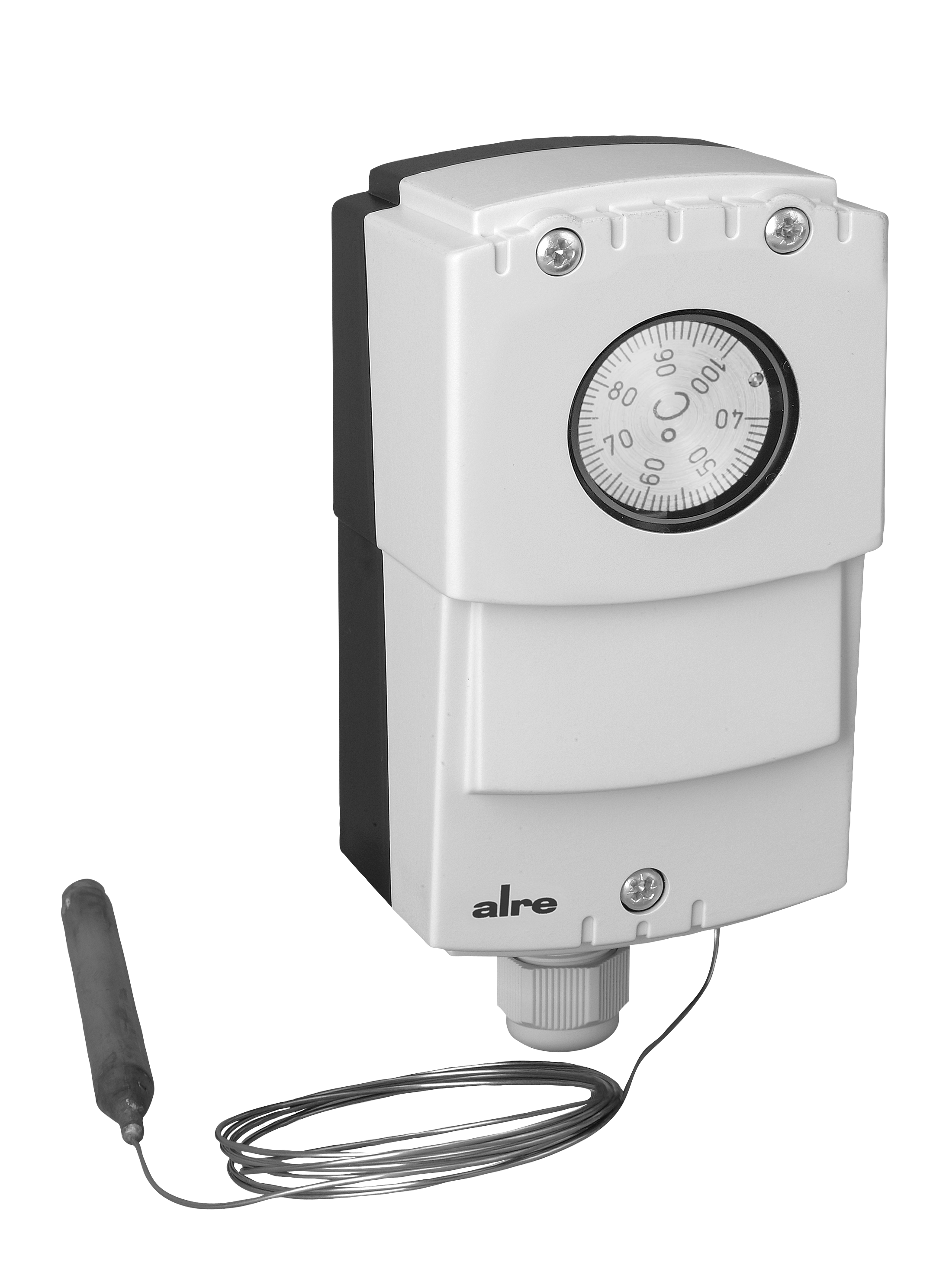

Capillary thermostat, wall mounting, 40…100 °C, hysteresis adjustable 2…20 K, internal setting, capillary length 1.8 m
Monitoring or control of temperatures of non-aggressive, liquid and gaseous media. Particularly suitable for wall mounting. When controlling the temperature of non-aggressive gases in the duct, the SW-200-12 thermowell must be used; when controlling the temperature of non-aggressive fluids, the TH thermowell must be used; in aggressive fluids, the NTH thermowell must be used. Thermowells or protective coils are not included in the scope of delivery.
| Number of outputs | 2 |
|---|---|
| Number of control ranges | 1 |
| Output signal | switching |
| External setting | No |
| Operation | internal setpoint adjuster |
| Rated impulse voltage | 4000 V |
| Diameter sensor element | 9.6 mm |
| Electric connection | screw terminals |
| Electronic control | No |
| With explosion protection | No |
| Colour | grey |
| RAL colour number (similar) | 7016/7035 |
| Sensor element | capillary tube |
| Function type (systems engineering) | TW |
| Device version | surface-mounted unit |
| Internal setting | Yes |
| Bearing temperature | –20 … 55 °C |
| Length of sensor | 122 mm |
| Capillary length | 1.8 m |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Sensor material | Cu (capillaries made from V2A) |
| Housing material | plastic |
| Max. Sensor temperature | 110 °C |
| Max. switching voltage | 230 VAC, 50 Hz |
| Max. switching current | 15 (8) A |
| Mechanical range reduction | No |
| Medium | Gas/Fluid |
| Min. switching voltage | 24 VAC, 50 Hz |
| Min. switching current | 150 mA |
| Mounting/attachment | wall mounting |
| Surface finish | matt |
| Control range | 40 … 100 °C |
| Heating control function | Yes |
| Cooling control function | Yes |
| Switching difference, can be adjusted | Yes |
| Switching differential adjustable from to | 2 … 20 K |
| Switching element | microswitch |
| Switching contact | two-way contact |
| Potential free switching contact | Yes |
| Switching power | 3450 W |
| Protection class | IP65 |
| Protection class | I |
| Safety and EMC | in accordance with DIN EN 60730 |
| Scale | Degree Celsius |
| Ambient temperature | 40 … 100 °C |
| Degree of contamination | 2 |
| Dimensions (W x H x D) | 71 mm x 144 mm x 67,5 mm |
Downloads
| User manual |
| RoHS declaration |
| BIM data |
