HTRRB-011.010

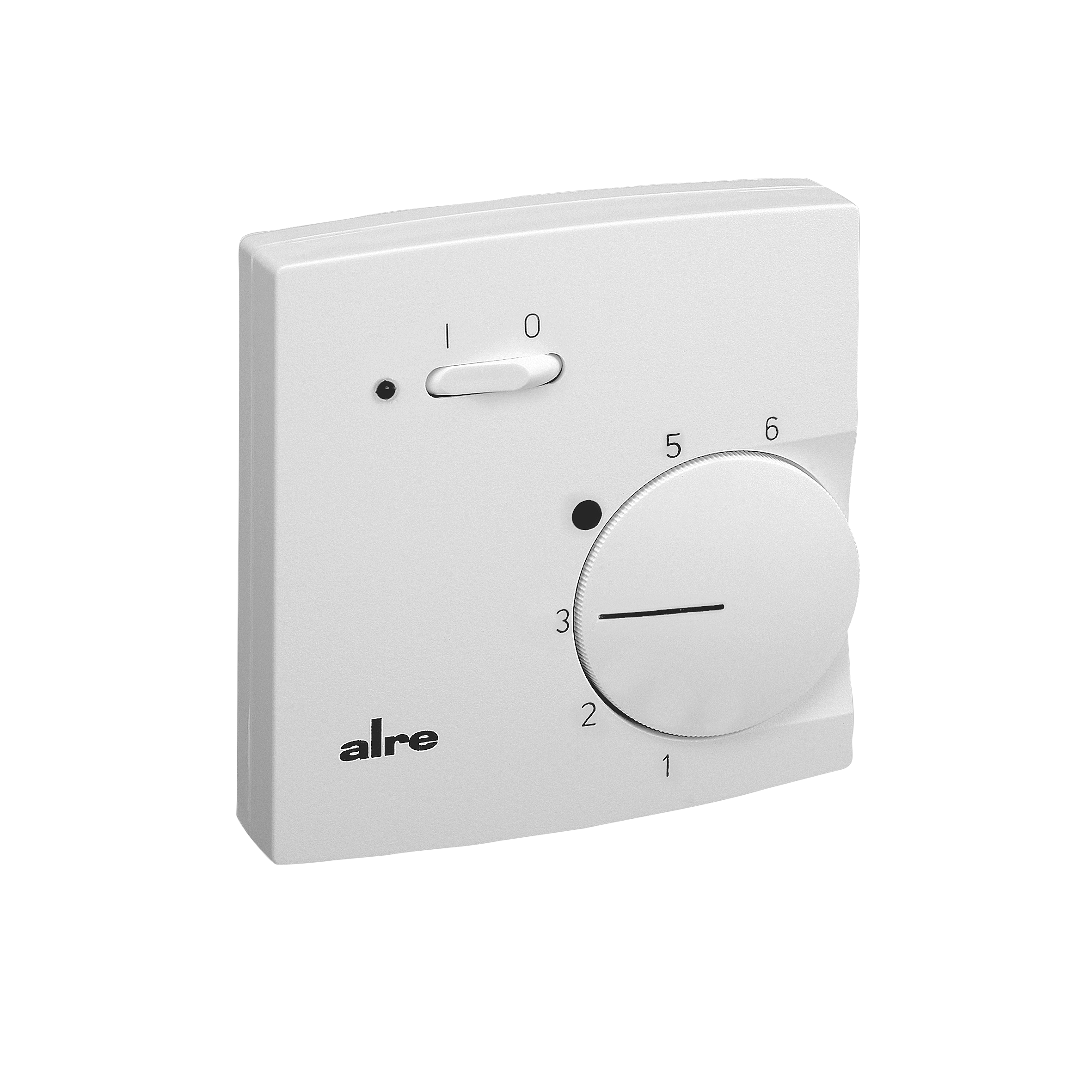

Floor temperature controller with remote sensor, surface-mounted, 10…60 °C
For temperature control (e.g. electric heating) for floor, edge zone, bathroom, ceiling, tiled stove, marble and wall heating or temperature control systems.
Electronic floor temperature controller for electric underfloor heating systems up to 3000 W. The setting range can be changed using the range restriction located under the setting knob (e.g. 10…40 °C). Remote sensor HF-8/4-K2 (4 m) included in the scope of delivery. The heating is switched off in the event of a sensor break or short circuit.
| Number of outputs | 1, 1 |
|---|---|
| Number of outputs, heating | 1 |
| Number of control ranges | 1 |
| Actual temperature display | No |
| Temperature controller version | underfloor temperature controller |
| Output signal | switching |
| External setting | Yes |
| Operation | rotary knob and switches |
| Operating voltage | 230 VAC, 50 Hz, 230 VAC, 50 Hz |
| Design | Berlin 2000, Berlin 2000 |
| Display | No |
| ECO function (reduction) | No |
| Electric connection | screw terminals |
| Electronic control | Yes |
| Energy efficiency class | I |
| Colour | pure white |
| RAL colour number (similar) | 9010 |
| Sensor element | NTC external |
| Bearing temperature | –20 … 70 °C |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Housing material | plastic ABS |
| Max. switching voltage | 230 VAC, 50 Hz |
| Max. switching current | 13 (2) A |
| Mechanical range reduction | Yes |
| Medium | Air |
| Min. switching voltage | 230 VAC, 50 Hz |
| With receiver | No |
| Mounting/attachment | surface mounting |
| Surface finish | matt, matt |
| Control range | 10 … 60 °C, 10 … 60 °C |
| Heating control function | Yes |
| Cooling control function | |
| Control behaviour | 2-point |
| Switching differential | 1 K |
| Switching difference, can be adjusted | No |
| Switching element | relay |
| On/Off switch | Yes |
| Heating/cooling switch | No |
| Additional heating switch | No |
| Switch/lamp night-time reduction | No |
| Switching contact | normally open contact |
| Potential free switching contact | No |
| Switching power | 3000 W |
| Protection class | IP30 |
| Protection class | II, following appropriate mounting |
| Sensor external | Yes |
| Safety and EMC | in accordance with DIN EN 60730 |
| Scale | Index number scale 1…6 |
| Ambient temperature | 0 … 30 °C |

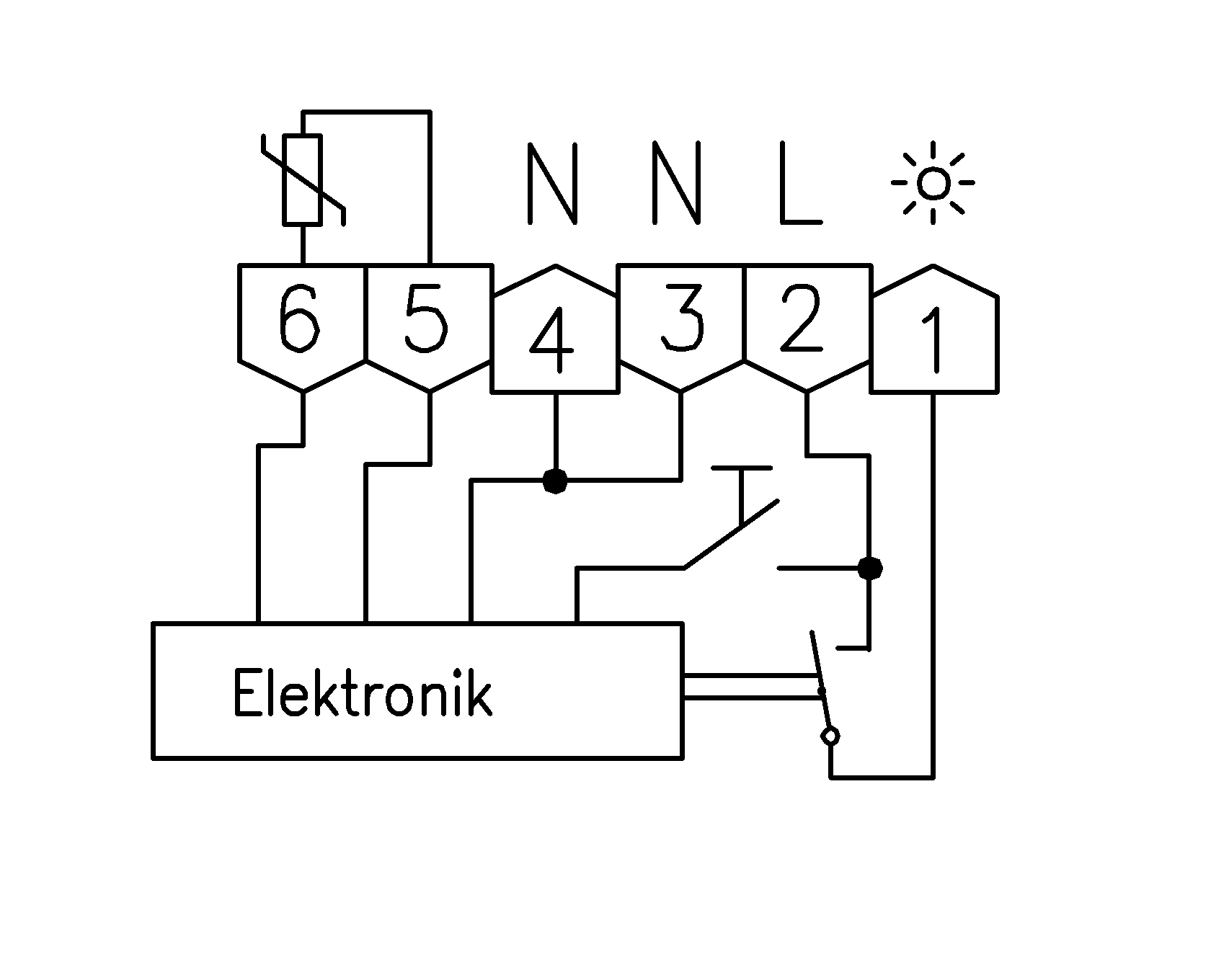

| Type of wiring | three-/four-wire |
| Assembly | complete device |
| Dimensions (W x H x D) | 78,3 mm x 83,4 mm x 25,5 mm |
