HTFRB-010.101

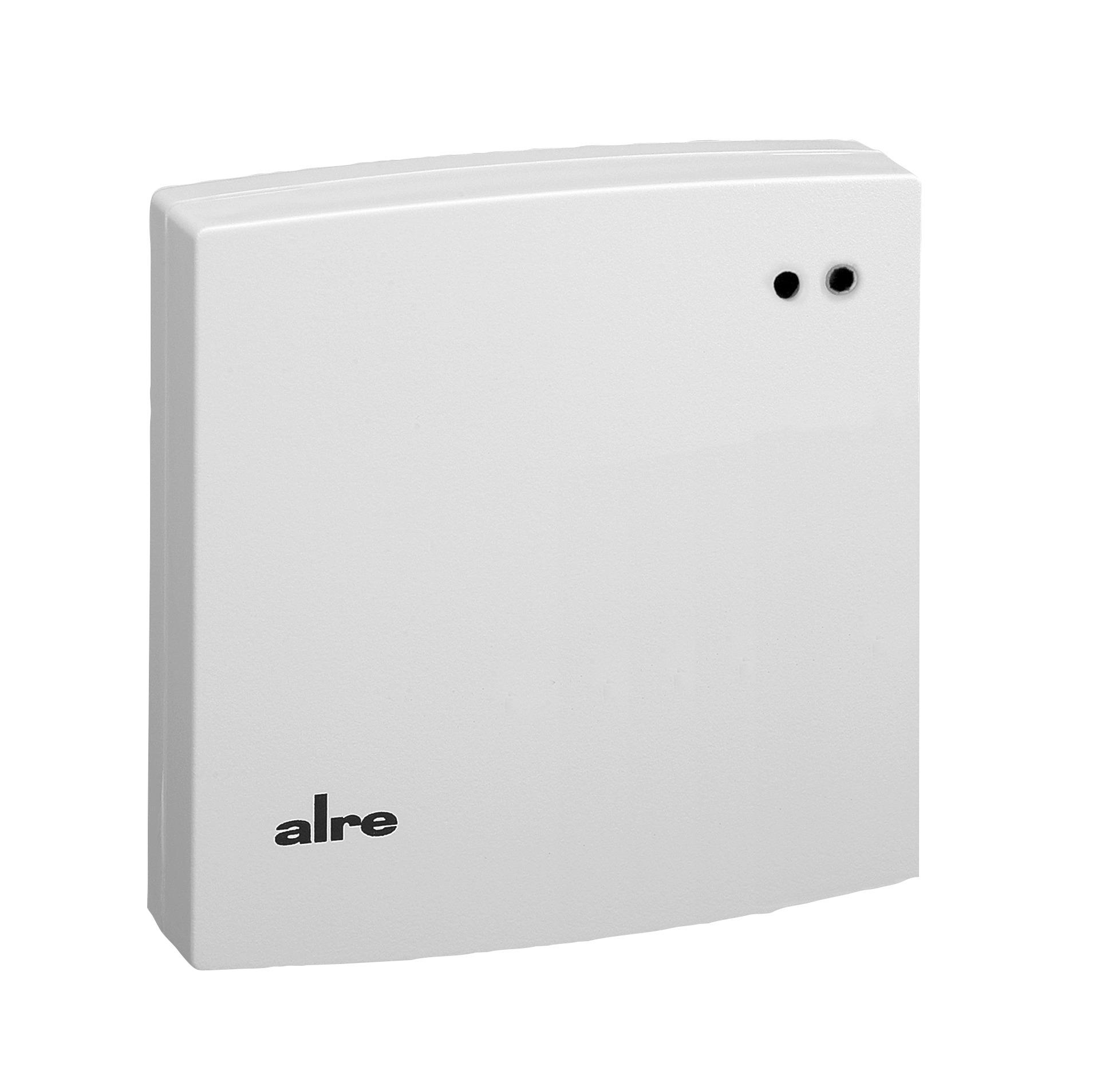

Wireless heating actuator, surface-mounted
Wireless actuators (wireless heating controllers) which, in conjunction with alre wireless room temperature sensors, realize individual room temperature control. Mainly used in renovation projects or for heating system extensions.
1-channel radio temperature actuator for direct electric heating systems, natural stone heating systems.
Luka Unpacks
Loading video…
| Number of outputs | 1, 1 |
|---|---|
| Number of channels/zone | 1 |
| Display type | LED |
| Output signal | switching |
| Operation | Key |
| Operating voltage | 230 VAC, 50 Hz, 230 VAC, 50 Hz |
| Design | Berlin 2000, Berlin 2000 |
| Electric connection | screw terminals |
| Colour | pure white |
| RAL colour number (similar) | 9010 |
| Radio frequency | 868.3 MHz |
| Bearing temperature | –20 … 70 °C |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Housing material | plastic ABS |
| Max. switching voltage | 230 VAC, 50 Hz |
| Max. switching current | 13 (2) A |
| Min. switching voltage | 230 VAC, 50 Hz |
| Mounting/attachment | Flush-mounted socket (min. 62mm deep) |
| Surface finish | matt, matt |
| Control range | 5 … 30 °C |
| Heating control function | Yes |
| Cooling control function | |
| Switching differential | 0,5 K (delta T max. 4 K/h) |
| Switching element | relay |
| Switching contact | normally open contact |
| Potential free switching contact | No |
| Switching power | 3000 W |
| Protection class | IP30 |
| Protection class | II, following appropriate mounting |
| Safety and EMC | in accordance with DIN EN 60730 |
| Ambient temperature | 0 … 40 °C |

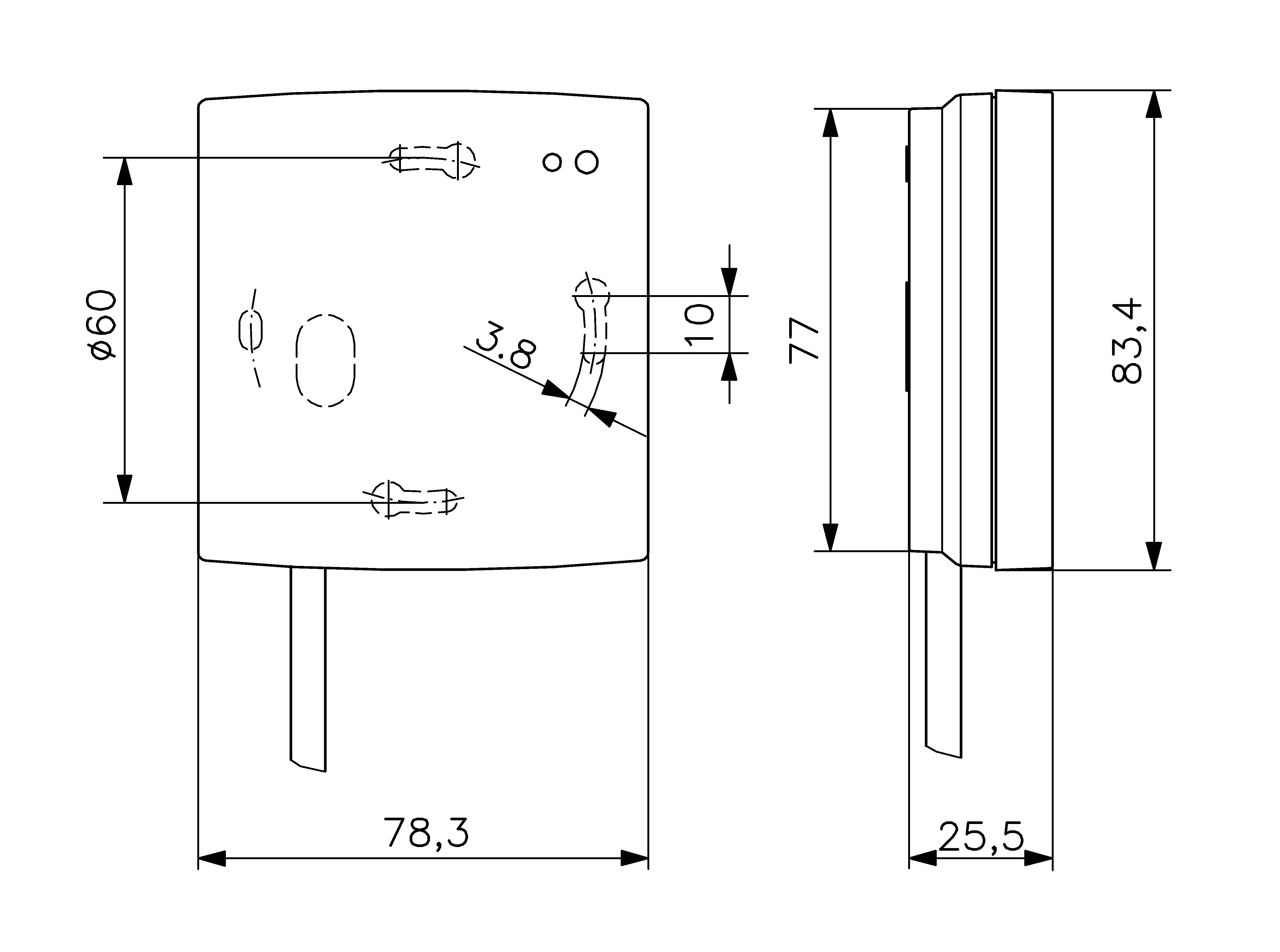

| Dimensions (W x H x D) | 78,3 mm x 83,4 mm x 25,5 mm |
