HTFMA-180.161

Radio heating actuator for radiator valves

Wireless actuators (wireless heating controllers) which, in conjunction with alre wireless room temperature sensors, realize individual room temperature control. Mainly used in renovation projects or for heating system extensions.

1-channel radio temperature actuator for radiator valves. Adapter for Danfoss RA, RAV, RAVL included in the scope of delivery.


SKU: G8000422 Categories: , ,
Add to wishlist
Compare

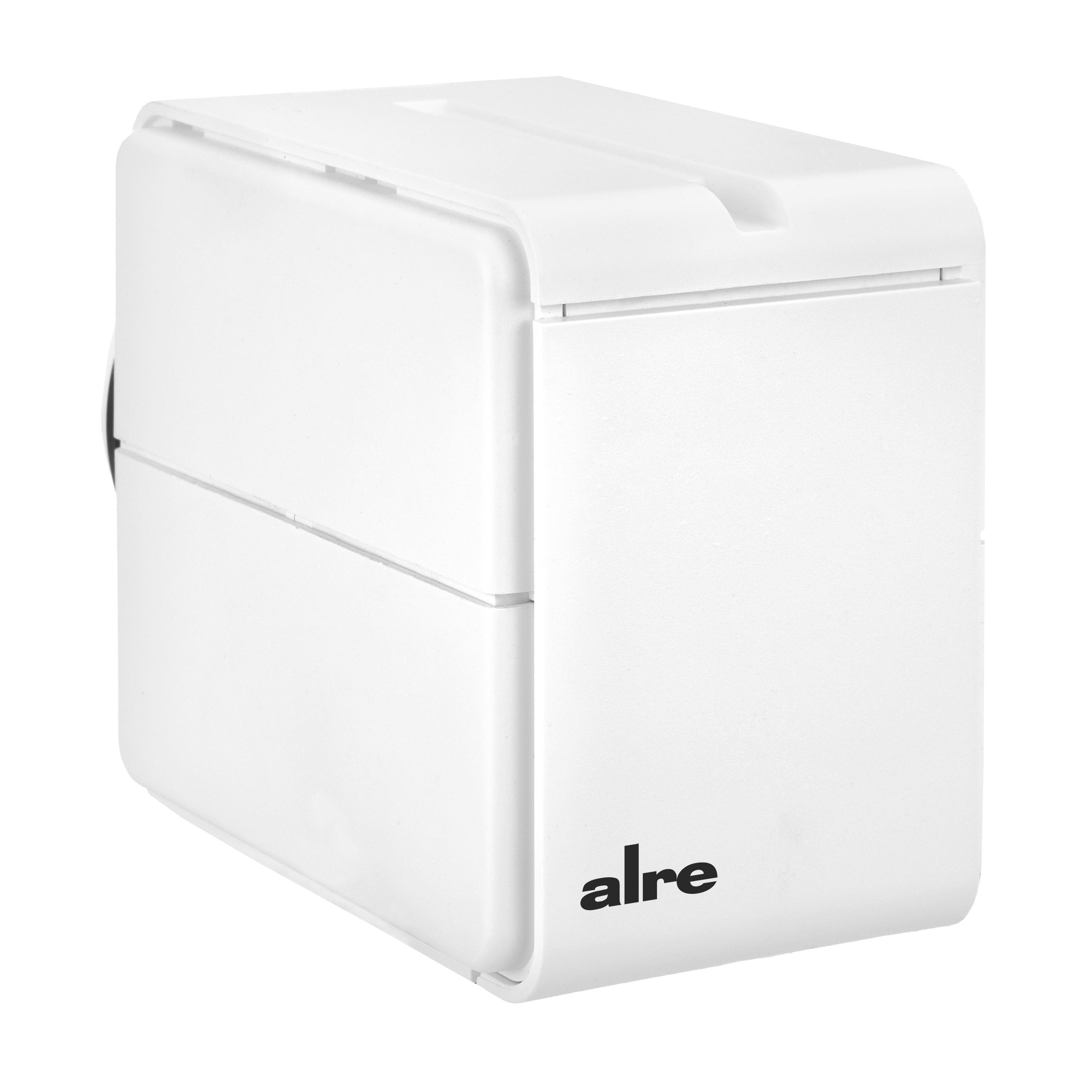

HTFMA-180.161 — produktbild
HTFMA-180.161 — masszeichnung
Click to enlarge
    HTFMA-180.161 — produktbild
    HTFMA-180.161 — masszeichnung
    Operationinternal setpoint adjuster
    Operating voltage2 x Micro AAA, 1.5 V
    Electric connectionother
    Colour
    RAL colour number (similar)9010
    Sensor elementNTC internal
    Bearing temperature–20 … 50 °C
    Max. air humidity (non-condensing)95 % r.H.
    Housing materialplastic ABS
    Mounting/attachment
    Nominal stroke5 mm
    Nominal closing force100 N
    Surface finishmatt, matt
    Heating control functionYes
    Cooling control functionNo
    Switching differential0,5 K (delta T max. 4 K/h)
    Potential free switching contactNo
    Protection classIP30
    Protection classIII
    Safety and EMCin accordance with DIN EN 60730
    Ambient temperature0 … 50 °C
    Dimensions (W x H x D)48 mm x 75 mm x 64 mm

    Downloads

    User manual
    RoHS declaration
    BIM data
