HI-1

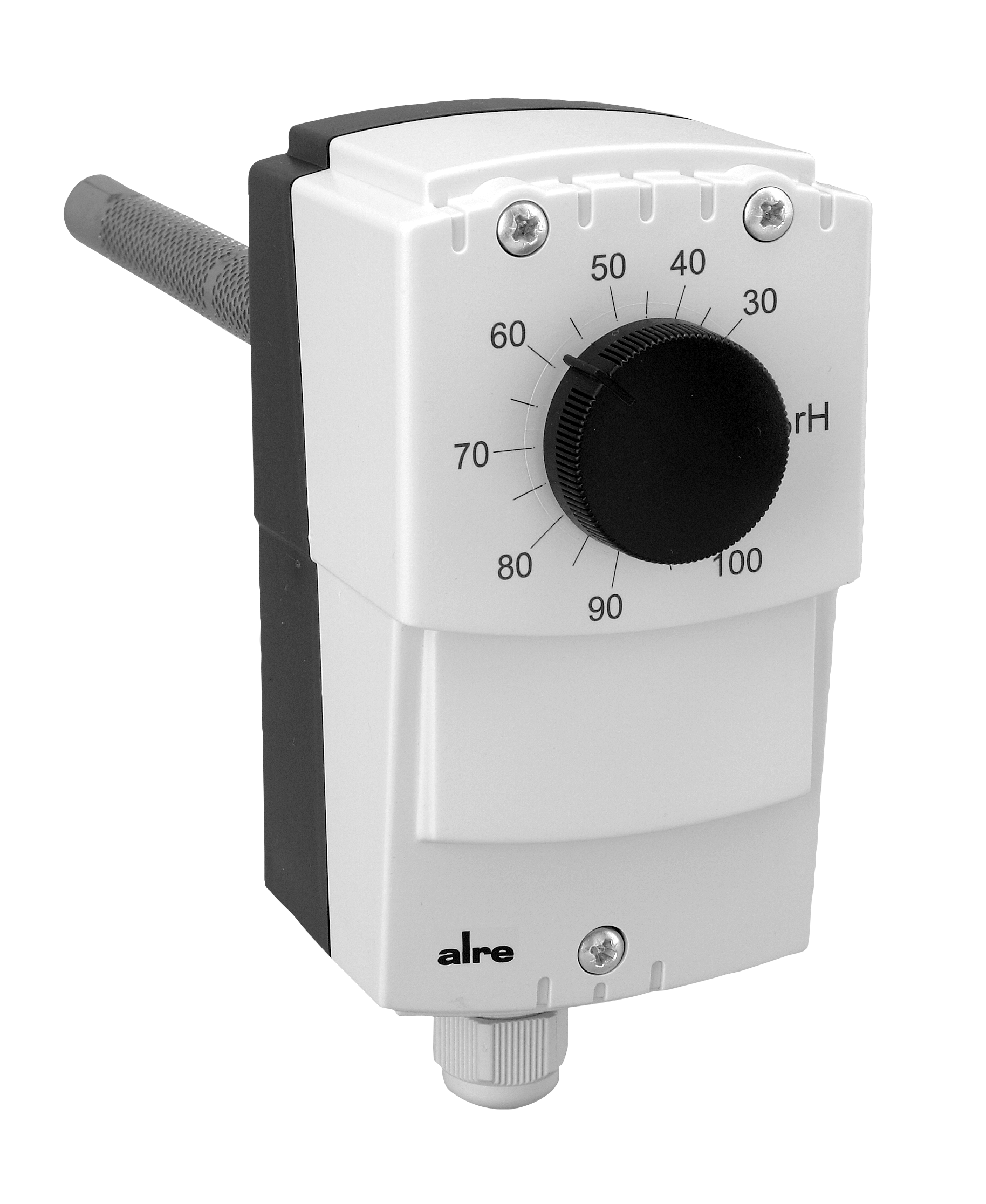

Hygrostat, duct/wall mounting, outdoor setting
Used in ventilation and air conditioning ducts, air conditioning cabinets and dehumidifiers for controlling and/or monitoring humidity in industry and agriculture. Not suitable for aggressive gases. Max. Air velocity 8 m/s, with sensor protection FS-HI 15 m/s. Mechanical range narrowing possible with the adjustment lugs located under the setpoint knob.
| Number of outputs | 2 |
|---|---|
| Number of switching stages | 1 |
| Number of control ranges | 1 |
| Output signal | switching |
| External setting | Yes |
| Operation | rotary knob |
| Average power consumption | 0 W |
| Relative humidity setting range | 30 … 100 % |
| Electric connection | screw terminals |
| Colour | light grey |
| RAL colour number (similar) | 7035 |
| Sensor element | plastic fibres |
| Function type (systems engineering) | controller |
| Internal setting | No |
| Bearing temperature | –20 … 60 °C |
| Max. air humidity (non-condensing) | 100 % r.H. |
| Housing material | plastic ABS |
| Max. switching voltage | 230 VAC, 50 Hz |
| Max. switching current | 15 (8) A |
| Mechanical range reduction | Yes |
| Medium | Air |
| Min. switching voltage | 24 VAC, 50 Hz |
| Min. switching current | 150 mA at 125 V AC |
| Mounting/attachment | mounting on air duct or wall mounting |
| Surface finish | matt |
| Humidifying/dehumidifying control function | Yes |
| Switching differential | 5 % r.H. |
| Switching difference, can be adjusted | No |
| Switching element | microswitch |

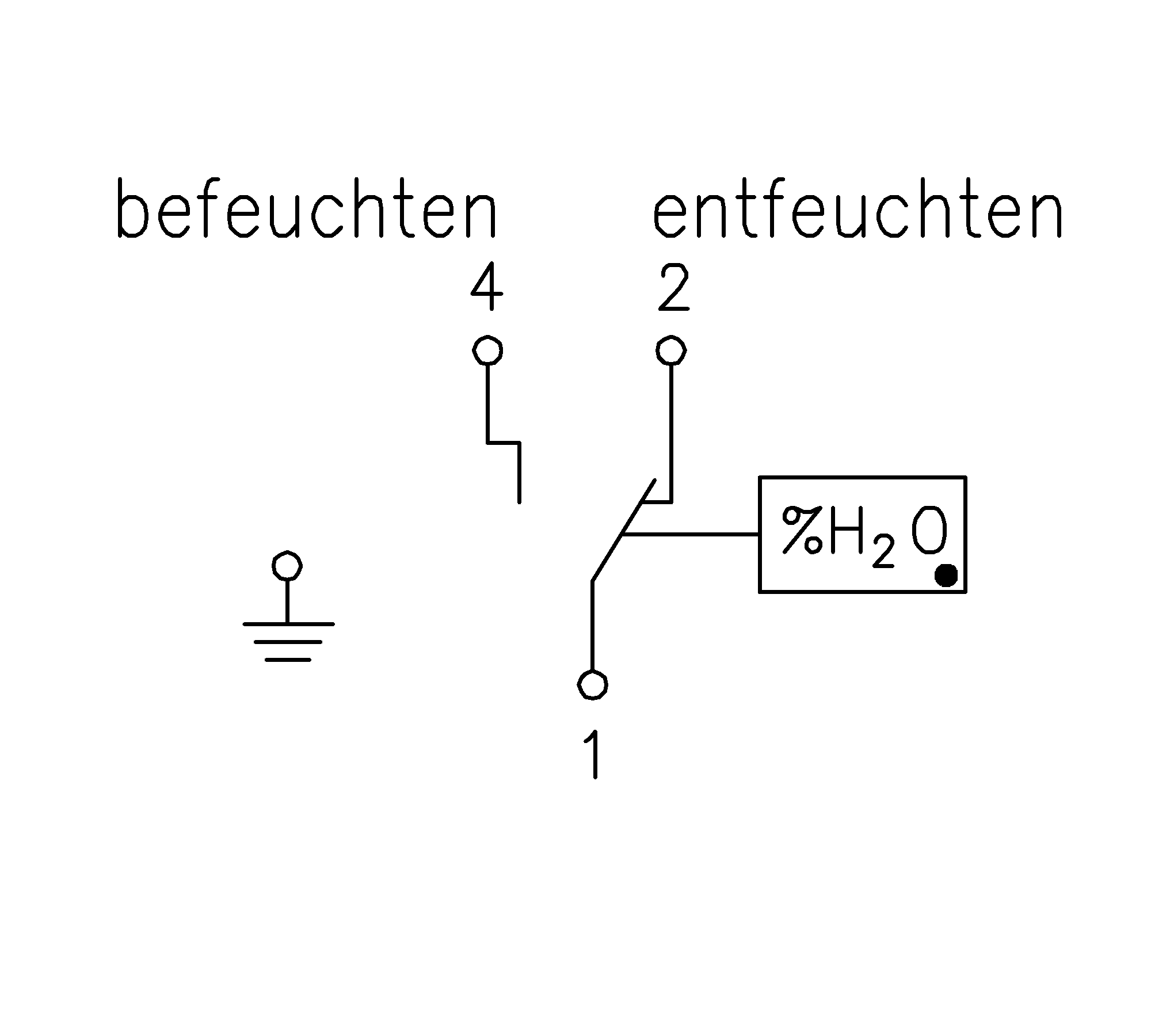

| Switching contact | two-way contact |
| Potential free switching contact | Yes |
| Switching power | 3450 W |
| Protection class | IP65 |
| Protection class | II, following appropriate mounting |
| Safety and EMC | in accordance with DIN EN 60730 |
| Ambient temperature | 0 … 60 °C |

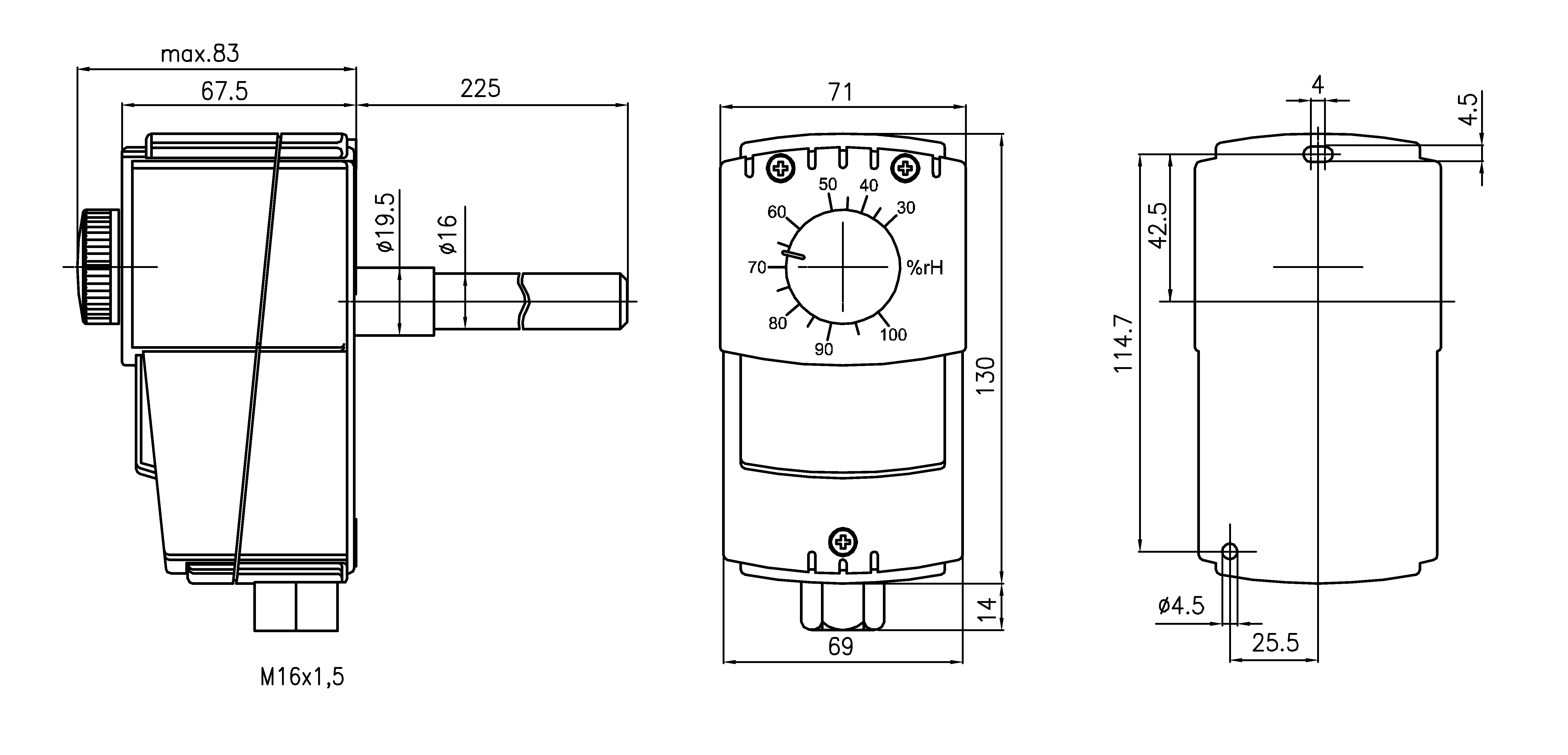

| Dimensions (W x H x D) | 71 mm x 144 mm x 83 mm |
