FTRFB-280.119

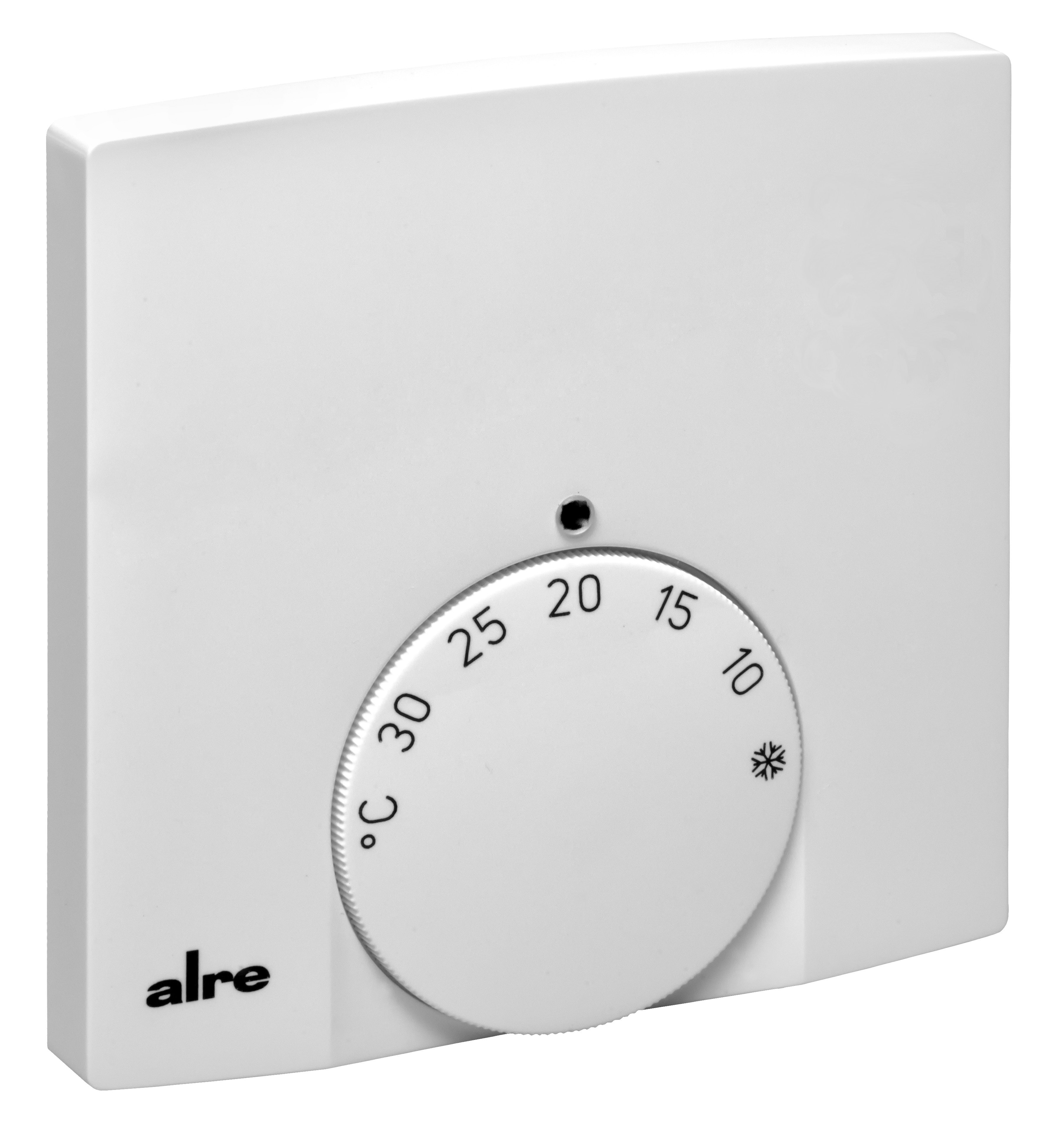

Wireless room temperature sensor, surface-mounted, super-flat, setpoint adjuster
Wireless sensors for the usual degree of soiling in residential, office and hotel rooms. Mainly used in renovation projects or for heating system extensions.
Wireless room temperature sensor for detecting and setting the room temperature. When used with alre wireless actuators, individual room temperature control is realized. A battery change that will soon be necessary is signaled on the sensor.
Luka Unpacks
Loading video…
| Actual temperature display | No |
|---|---|
| Display type | LED |
| External setting | Yes |
| Operation | rotary knob |
| Operating voltage | 2 x Micro AAA, 1.5 V |
| Design | Berlin 1000, Berlin 1000 |
| Colour | pure white |
| RAL colour number (similar) | 9010 |
| Sensor element | NTC internal |
| Radio frequency | 868 MHz |
| Internal setting | No |
| Bearing temperature | –10 … 50 °C |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Manual setpoint adjustment | Yes |
| Housing material | plastic ABS |
| Medium | Air |
| With bus connection | Yes |
| With display | No |
| With LED display | Yes |
| With on-site operation | Yes |
| Mounting/attachment | surface mounting |
| Surface finish | gloss |
| Surface protection | untreated |
| Control range | 5 … 30 °C |
| Heating control function | Yes |
| Cooling control function | Yes |
| Operating range | 150m line of sight/up to 30m indoors |
| Protection class | IP30 |
| Protection class | III |
| Safety and EMC | in accordance with DIN EN 60730 |
| Transparent | No |
| Ambient temperature | −10 … 50 °C |
| Valve protection function | No |
| Assembly | complete device |
| Dimensions (W x H x D) | 78 mm x 78,5 mm x 13,9 mm |
