CTRRS-161.000/06

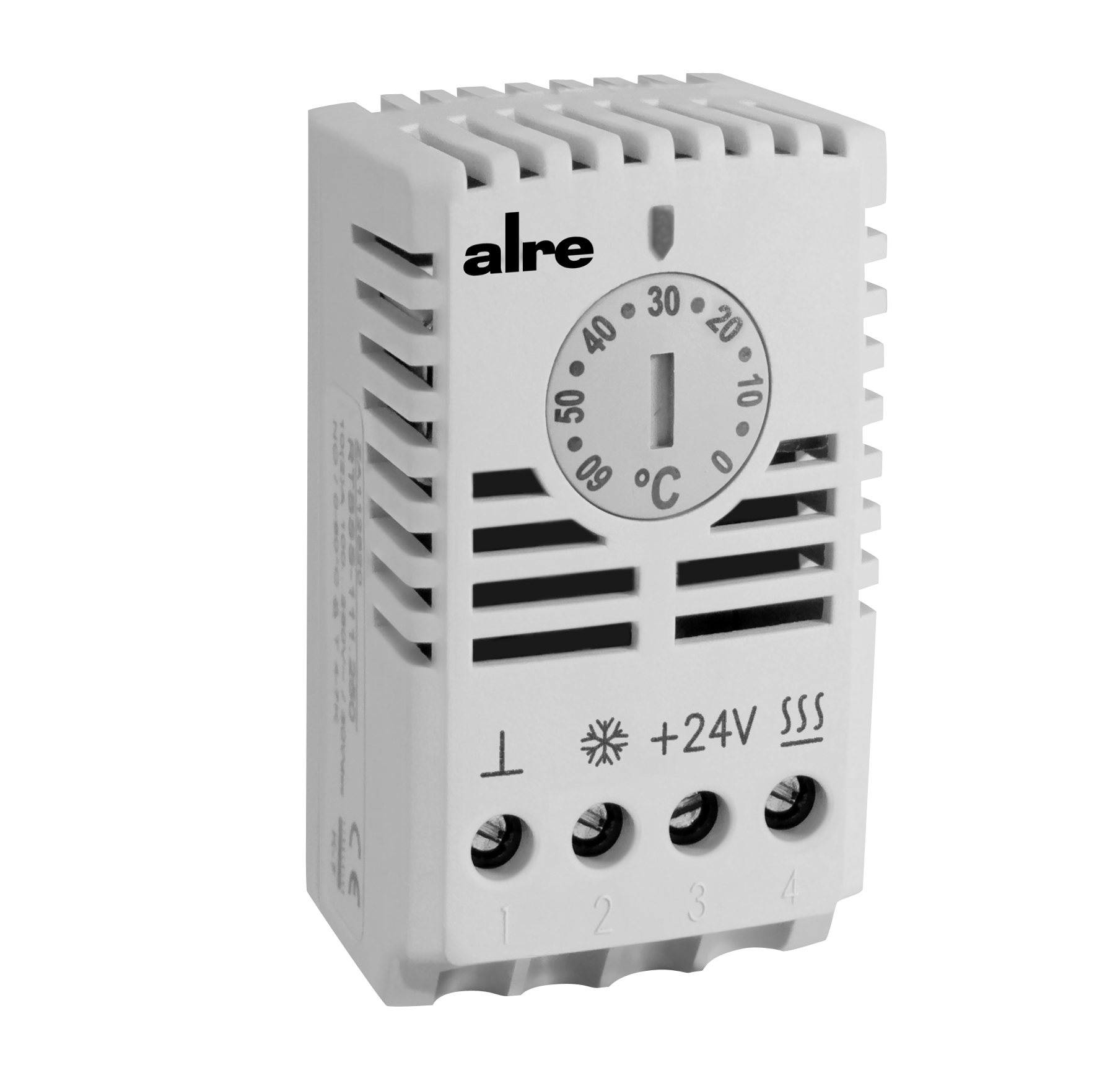

Electronic control cabinet thermostat for Peltier modules – heating or cooling. 24 VDC

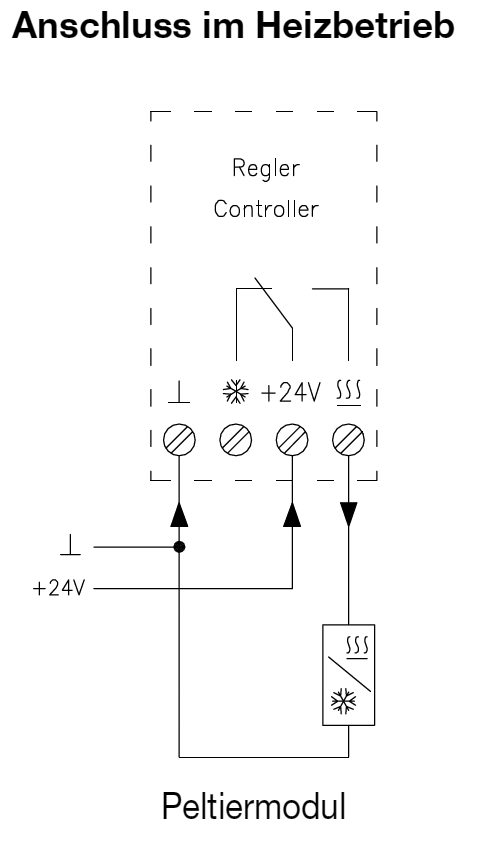

This temperature controller was specially developed for controlling Peltier modules, for heating or cooling switch cabinets, ticket and cash machines or for heating/cooling messages or requirements. The controller can only be used for one operating mode, heating or cooling.
| Connection cross-section | 0,5 – 2,5 mm² |
|---|---|
| Number of outputs | 2, 2 |
| Number of control ranges | 1 |
| Output signal | switching |
| External setting | Yes |
| Operation | |
| Rated impulse voltage | 500 V |
| Operating voltage | 24 VDC |
| Average power consumption | 0.2 W |
| Electric connection | screw terminals |
| Electronic control | Yes |
| With explosion protection | No |
| Colour | grey |
| RAL colour number (similar) | 7035 |
| Sensor element | NTC internal |
| Internal setting | No |
| Bearing temperature | –20 … 70 °C |
| Max. air humidity (non-condensing) | 95 % r.H. |
| Housing material | plastic PA6 |
| Max. switching voltage | 24 VDC |
| Max. switching current | 16 A |
| Medium | |
| Min. switching voltage | 24 VDC |
| Mounting/attachment | on supporting rails (35 mm), EN 60715 |
| Surface finish | matt, matt |
| Control range | 0 … 60 °C, 0 … 60 °C |
| Heating control function | Yes |
| Cooling control function | Yes |
| Switching differential | Heating/cooling: 2 … 3 K |
| Switching difference, can be adjusted | No |
| Switching element | |
| Switching contact | two-way contact |
| Potential free switching contact | Yes |
| Switching power | 384 W |
| Protection class | |
| Protection class | III |
| Safety and EMC | in accordance with DIN EN 60730 |
| Scale | Degree Celsius |
| Ambient temperature | −10 … 60 °C |
| Degree of contamination | 2 |

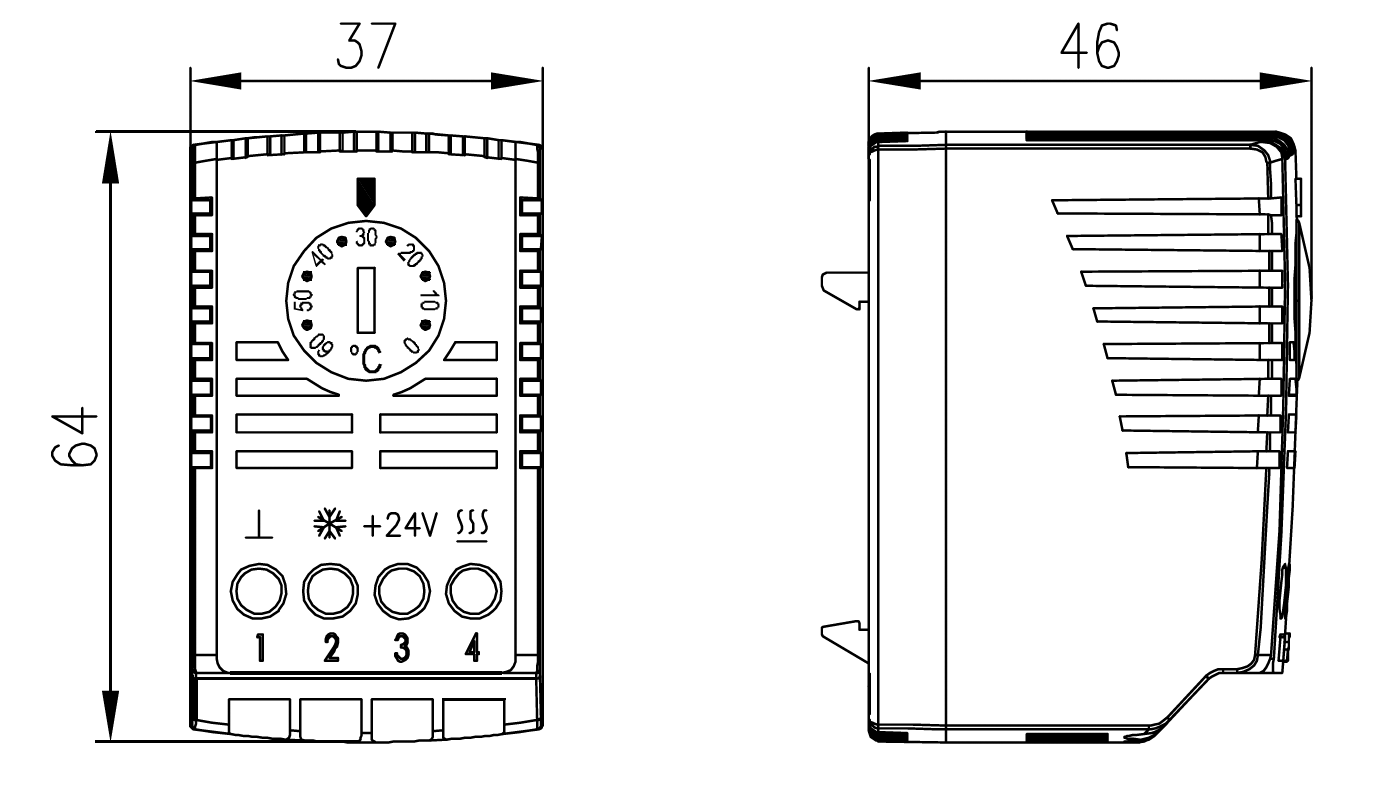

| Dimensions (W x H x D) | 37 mm x 46 mm x 64 mm |
