CTFRB-010.101

Wireless cooling actuator, surface-mounted

1-channel wireless temperature actuator for cooling only, which implements individual room temperature control in conjunction with alre wireless room temperature sensors. Mainly used in renovation projects or for heating system extensions.

Luka Unpacks

Loading video…

SKU: BA110600 Categories: , ,
Add to wishlist
Compare
CTFRB-010.101 — produktbild

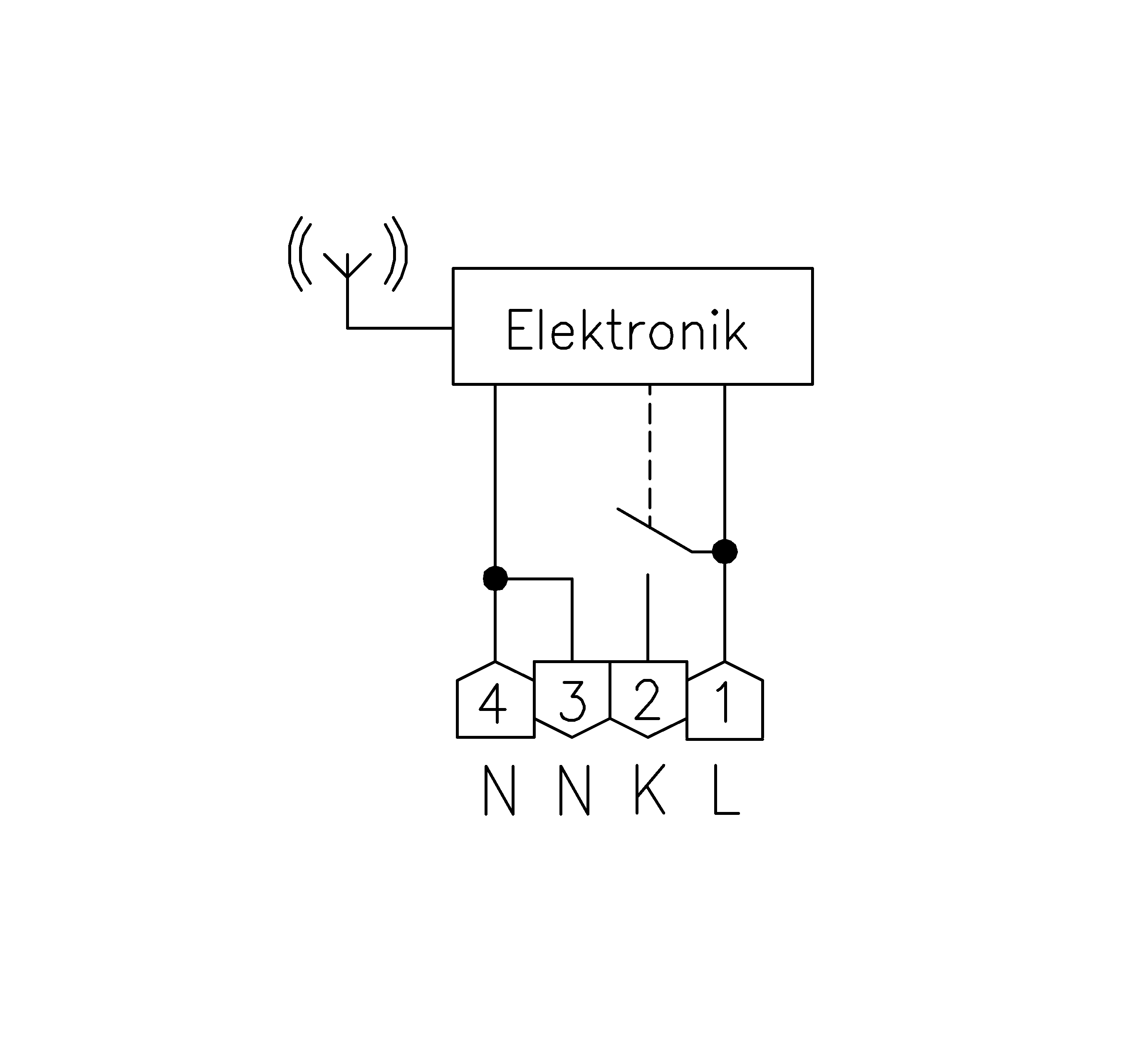

CTFRB-010.101 — anschlussbild
CTFRB-010.101 — masszeichnung
Click to enlarge
    CTFRB-010.101 — produktbild
    CTFRB-010.101 — anschlussbild
    CTFRB-010.101 — masszeichnung
    Number of outputs1
    Number of channels/zone1
    Display typeLED
    Output signalswitching
    Operation
    Operating voltage230 VAC, 50 Hz
    DesignBerlin 2000
    Electric connectionscrew terminals
    Colour
    RAL colour number (similar)9010
    Radio frequency868 MHz
    Bearing temperature–20 … 70 °C
    Max. air humidity (non-condensing)95 % r.H.
    Housing materialplastic ABS
    Max. switching voltage230 VAC, 50 Hz
    Max. switching current10 (2) A
    Min. switching voltage230 VAC, 50 Hz
    Mounting/attachmentsurface mounting
    Surface finishmatt, matt
    Control range18 … 40 °C
    Heating control functionNo
    Cooling control functionYes
    Switching differential0,5 K (delta T max. 4 K/h)
    Switching element
    Switching contactnormally open contact
    Potential free switching contactNo
    Switching power2300 W
    Protection classIP30
    Protection classII, following appropriate mounting
    Safety and EMCin accordance with DIN EN 60730
    Ambient temperature−20 … 45 °C
    Dimensions (W x H x D)78,3 mm x 83,4 mm x 25,5 mm
