AFHC 10

Outdoor temperature sensor, NTC 10K, protruding sensor sleeve

The outdoor temperature sensors are used for temperature detection in outdoor areas, in damp rooms, in cold stores and greenhouses as well as in industrial areas and are particularly protected against dust and moisture. Due to the external sensor sleeve, this outdoor sensor has a very good response to temperature changes. If the sensor is exposed to direct sunlight, the use of a sunshade is recommended.


SKU: G9040220-en Categories: , ,
Add to wishlist
Compare

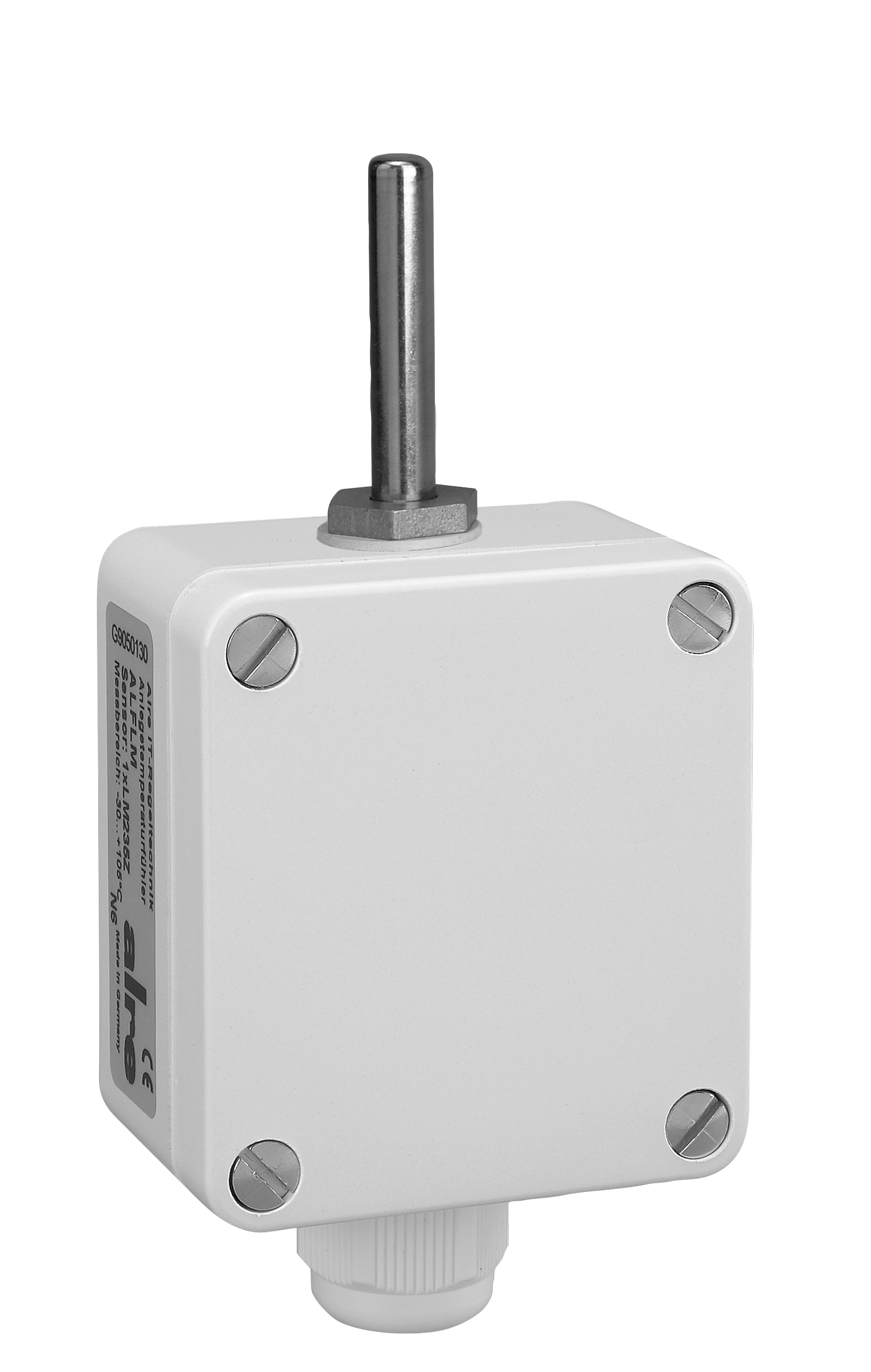

AFHC 10 — produktbild
AFHC 10 — anschlussbild

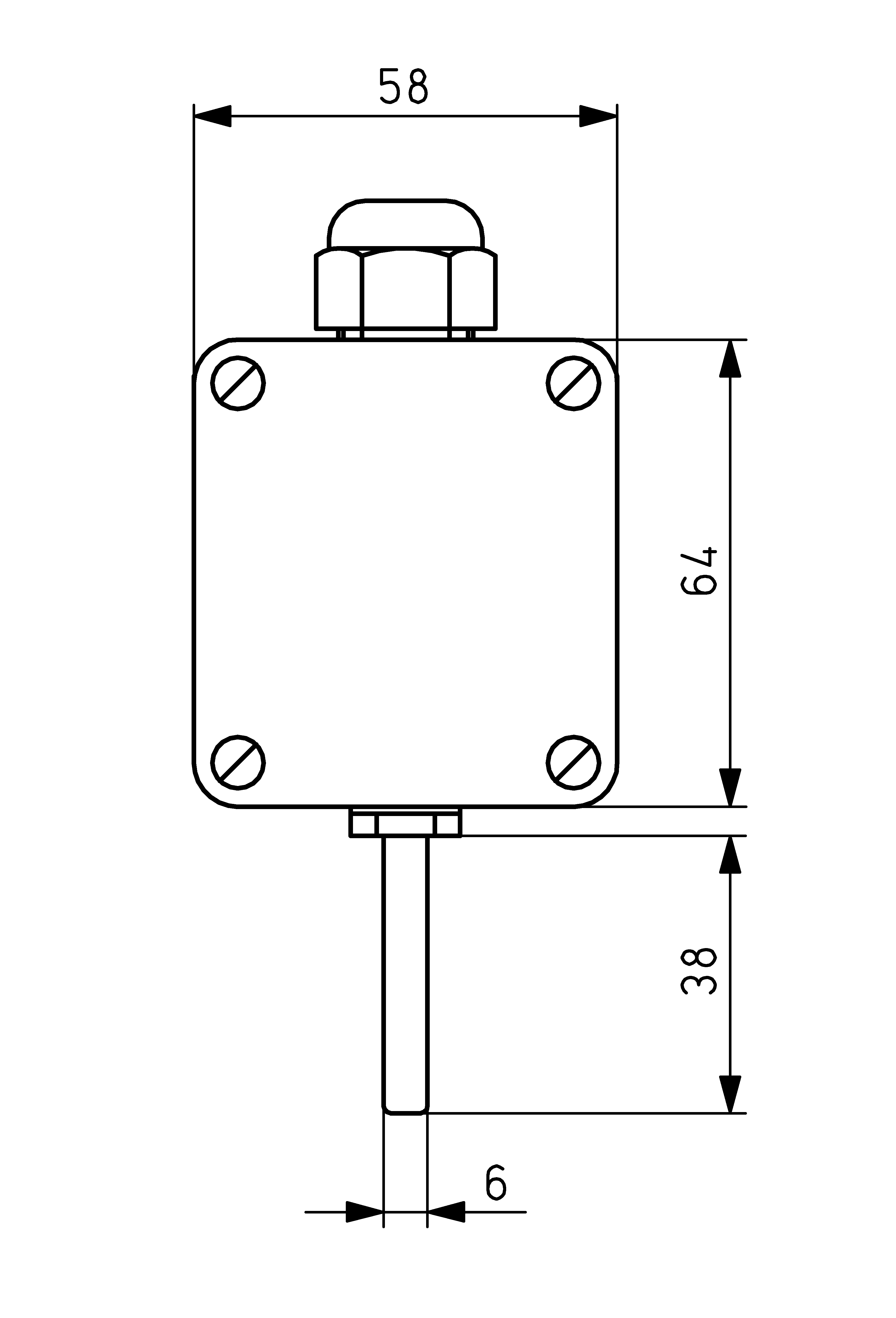

AFHC 10 — masszeichnung
Click to enlarge
    AFHC 10 — produktbild
    AFHC 10 — anschlussbild
    AFHC 10 — masszeichnung
    Active temperature measurementNo
    Connection cross-section0,14 – 2,5 mm²
    Version of sensorexternal sensor
    Cover fasteningbayonet fastening
    Electric connectionscrew terminals
    With explosion protectionNo
    Colour
    RAL colour number (similar)9010
    Sensor elementNTC internal
    Bearing temperature–30 … 70 °C
    Max. air humidity (non-condensing)95 % r.H.
    Housing materialplastic PA
    Max. Measuring current< 1 mA
    Medium
    With mounting materialNo
    With housingYes
    With supply lineNo
    Mounting/attachment
    Surface finishgloss
    Passive temperature measurementYes
    Protection classIP65, IP65
    Protection classIII
    Sensor element outside the housingYes
    Sensor element inside the housingNo
    Sensor typeNTC 10K (Sensor 4)
    Safety and EMCin accordance with DIN EN 60730
    Ambient temperature−30 … 70 °C
    Dimensions (W x H x D)58 mm x 102 mm x 34 mm
